Product data sheet

nD866 ExeLED 2 Explosion-protected LED light fitting

nD866F 12L85 (86600 0004)

Schuch

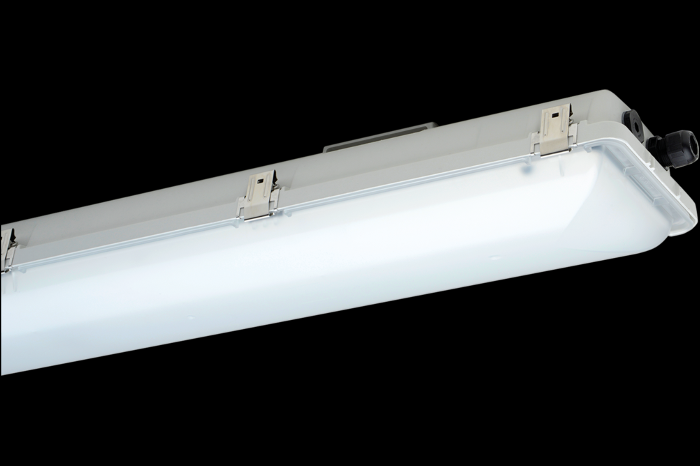

Product image 1: nD866 ExeLED 2 Explosion-protected LED light fitting
Product image 1: nD866 ExeLED 2 Explosion-protected LED light fitting

Product image 1: nD866 ExeLED 2 Explosion-protected LED light fitting



IP
66

IK
10

Explosion-protected LED light fitting, ExeLED 2, EX-Zone 2/22, 54 W, 8620 lm, 160 lm/W, Class I, IP66, wide beam, 5000 K, CRI≥ 80, Ta -30 °C/+40 °C, L80B50>100000 h (@ Ta max), L80B50>100000 h (@ Ta 25°C), L90B50>90000 h (@ Ta 25°C), Diffuser PC satined, Closure Stainless steel (1.4571), Housing Glass fibre reinforced polyester, Colour grey. Explosion-protected LED light fitting ExeLED 2 for zone 2/22. Glass fibre reinforced polyester housing, frosted cover made of polycarbonate with silicone gasket and stainless steel clips, two of them as safety clip. Steel reflector, varnished, carrying the LED modules and all electrical components, clipped into the cover, removable as a unit. ECG with overvoltage, overload and short circuit protection. External mounting system for variable mounting (accessory). Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 1250,00 mm, Width/Diameter 182,00 mm, Height 114,00 mm, Net weight 5,50 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 54 W 8619 lm 160 lm/W 5000 K 80
nD866 ExeLED 2 Explosion-protected LED light fitting

nD866 ExeLED 2 Explosion-protected LED light fitting

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant, Contact rail, Wall mounted

Shape and measurements

Length: 1250 mm

Width: 182 mm

Height: 114 mm

Adjustability

Fixed

Electric

System power: 54 W

Appliance Class: I

Protection

IP: 66

IK: 10

Designation labels: CE

Explosion zone suitability: 2

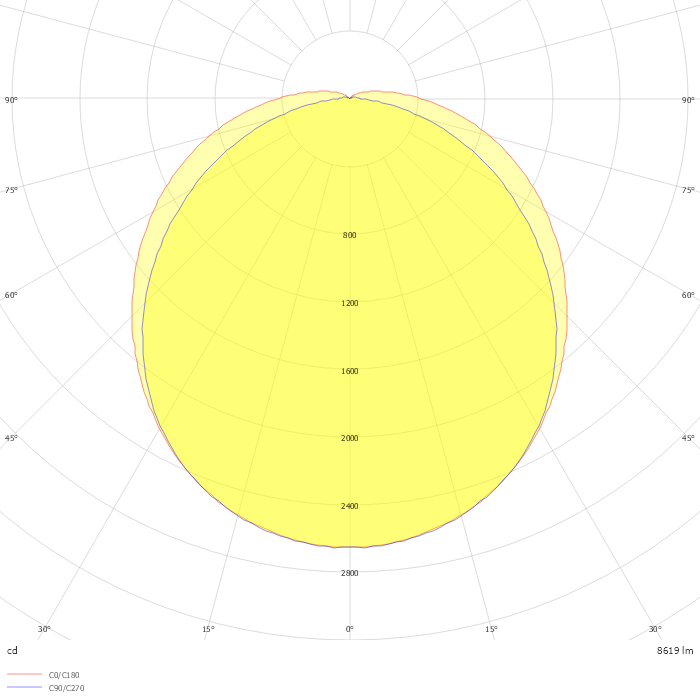

Photometric data

ZIP file
