Product data sheet

LED VALUE PANEL 0612B 53W 865 H IS

4058075755406

LEDVANCE

LEDVANCE® LED VALUE PANEL is a reliable LED panel with competitive price for general-purpose applications. With latest backlit technology platform, it provides uniform, comfortable, good quality of light and significant energy as well as maintenance savings. It is the best choice for the replacement of existing traditional louver luminaires. This VALUE panel range promises easy design, installation and maintenance are a breeze. Latest backlit LED technology platform. Integrated heat resistance lens for uniform light distribution, reduce product height to only 34mm. Available in 2 standard sizes: 600x600mm, 300x1200mm. Standard CCT: 4000K & 6500K. High color rendering: CRI > 80. High power factor: PF>0.90. Recess mount with optional plaster ceiling mounting clips and suspension kit. Long 50,000hr lifetime reduces maintenance costs. Flicker free driver. EMC suppression circuit in driver. Fast connector between panel and driver for easy installation and maintenance. Sturdy SPCC housing. Seamless aluminum frame design. Safety compliance certificates: CB, EU RoHS 2.0. DALI and 1-10V DIM versions available on request. Standard design with IP40 protection from the diffuser side. Special 600x600mm version available with improved IP54 protection from the diffuser side.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 53 W 5850 lm 110 lm/W 6800 K 80
LED VALUE PANEL 0612B 53W 865 H IS

LED VALUE PANEL 0612B 53W 865 H IS

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 1153 mm

Width: 543 mm

Height: 10 mm

Adjustability

Fixed

Electric

System power: 53 W

Protection

IP: 20

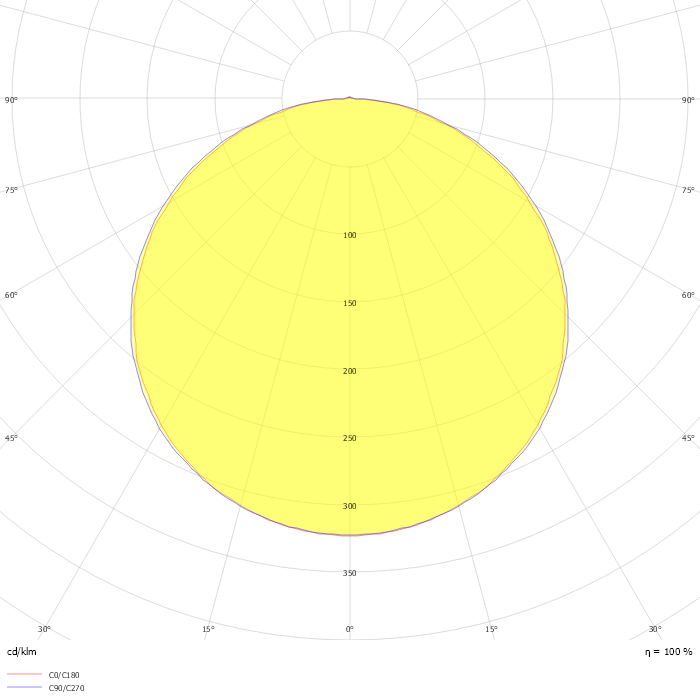

Photometric data

ZIP file
