Product data sheet

LUGSTAR PREMIUM LED ED 10W 72° 1250lm 4000K IP20 white black

030241.5L02.323

LUG

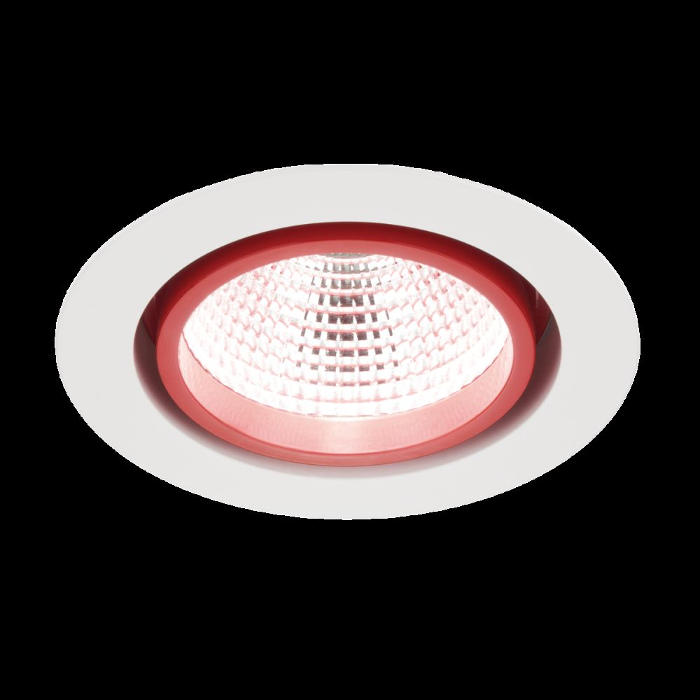

Product image 1: LUGSTAR PREMIUM LED ED 10W 72° 1250lm 4000K IP20 white black
Product image 1: LUGSTAR PREMIUM LED ED 10W 72° 1250lm 4000K IP20 white black

Product image 1: LUGSTAR PREMIUM LED ED 10W 72° 1250lm 4000K IP20 white black



IP
20

IK
04

Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44, for LED light sources. Mounting: in the ceiling, with mounting brackets (included) Body: aluminum Power: 220-240V 50/60Hz Lifetime (L80B10): 60 000 h Available on request: DALI, LED emergency module Other remarks: Flux of luminaire depends of the colour of the luminaire ring; claimed flux is appropriate for downlight luminaire in colour RAL9003 Warranty: 5 years Application: boutiques, delicatessen, jeweler, shopping centers, supermarkets, museums

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 10 W 1250 lm 125 lm/W 4000 K 83
LUGSTAR PREMIUM LED ED 10W 72° 1250lm 4000K IP20 white black

LUGSTAR PREMIUM LED ED 10W 72° 1250lm 4000K IP20 white black

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 110 mm

Diameter: 192 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 10 W

Appliance Class: II

Protection

IP: 20

IK: 04

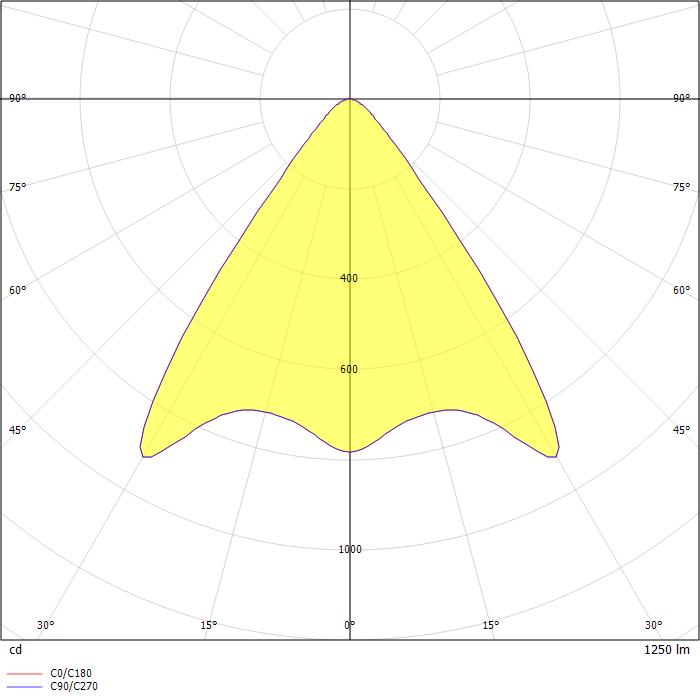

Photometric data

ZIP file
