Product data sheet

HEL6 ** L40 EW

Helios LED

Dextra

Product image 1: HEL6 ** L40 EW
Product image 1: HEL6 ** L40 EW

Product image 1: HEL6 ** L40 EW



IP
20

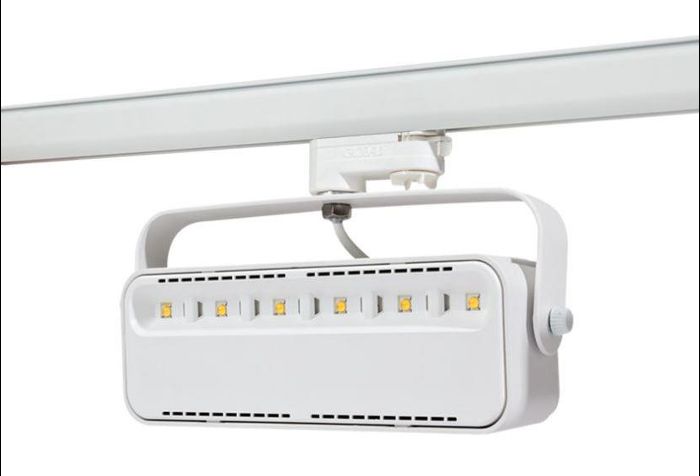

Helios - 265mm, C84 Track Spotlight with an extra wide beam angle. The Helios can be rotated and pivoted using a dial. Made from powder coated die cast aluminium with an injection moulded Polycarbonate cover. Options: A - Digital Addressable Lighting Interface (DALI) C83 - CRI 80, 3000K ** Insert BL for Black or WH for White

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 28.1 W 3765 lm 134 lm/W 4000 K 80
HEL6 ** L40 EW

HEL6 ** L40 EW

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Propriatary light system, Contact rail

Shape and measurements

Length: 293 mm

Width: 82 mm

Height: 123 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 28.1 W

Ballast: ECG

Protection

IP: 20

Designation labels: CE

Photometric data

ZIP file

Download file
