Product data sheet

EPK L80 LE3 ***

Ecopak Emergency

Dextra

Ecopak - 1500mm, Surface mounted batten luminaire, White powder painted metal body and steel spine, injection moulded polycarbonate end caps, high transmission curved opal diffuser. Options: LE3 - Lithium Emergency (427 lumen output) LS3 - Lithium Selftest LA3 - Lithium Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)* H - High Frequency Dimming (Analogue 1-10v) ** Select sensor R21E - Reacta 21, On/Off R21C - Reacta 21, Corridor Mode* R44 - Daylight regulating and Occupancy Sensor RLS - Reacta-Link Wireless Presence RCS - Reacta-Control Wireless, Presence *Bi-Level Dimming. Will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 43.84 W 7008 lm 160 lm/W 4000 K 80
EPK L80 LE3 ***

EPK L80 LE3 ***

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3 W 427 lm 142 lm/W 4000 K 80
EPK L80 LE3 ***

EPK L80 LE3 ***

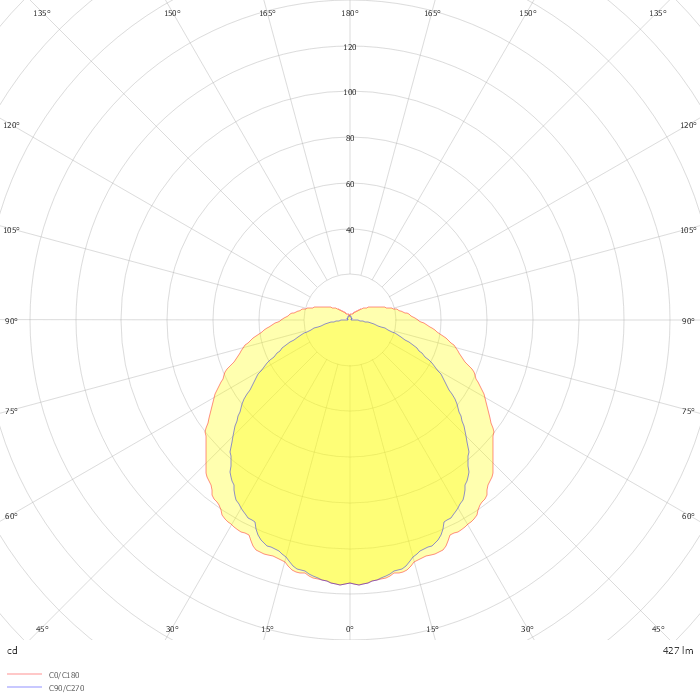

Light output 2 (integrated, emergency)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1486 mm

Width: 70 mm

Height: 70 mm

Adjustability

Fixed

Electric

System power: 46.84 W

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 20

Photometric data

ZIP file
