Product data sheet

X-LINE LED 3250 MICRO-PRM E 24 840 LINE-EL / L-1407MM

19.4161.3221.24

LUXIONA

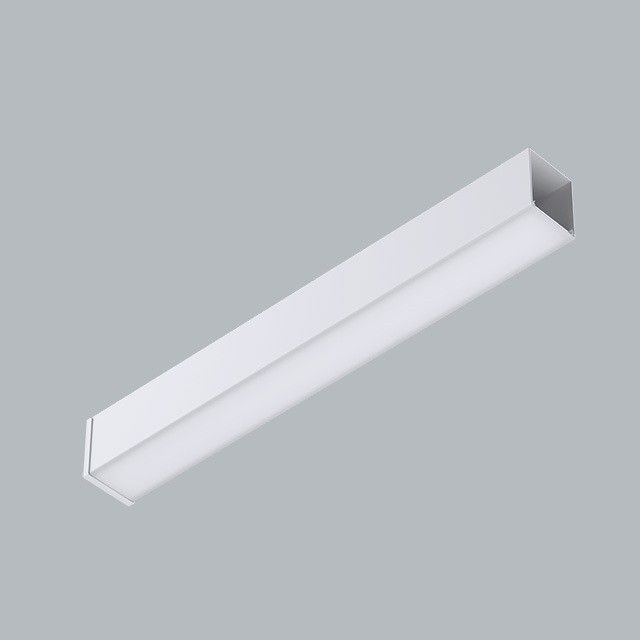

Product image 1: X-LINE LED 3250 MICRO-PRM E 24 840 LINE-EL / L-1407MM
Product image 1: X-LINE LED 3250 MICRO-PRM E 24 840 LINE-EL / L-1407MM

Product image 1: X-LINE LED 3250 MICRO-PRM E 24 840 LINE-EL / L-1407MM



IP
44

IK
04

Indoor luminaire. Assembly: directly mounted to ceiling construction or surface mounted on slings. The body material is aluminum. Colour - anodised aluminum. Dimensions: 1407 x 63 x 74 mm. Weight 3,4 kg. Diffuser: Micro-PRM (micro-prismatic diffuser PMMA). The efficiency of the optical system is 75,32%. Beam angle: (C0-C180) / (C90-C270) - 82,8° / 97,2°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 (1) / 147000 (2) h L80/B10 (1) / L70/B50 (2). Luminaire luminous flux: 2465 lm. Power of luminaire: 18,3 W. Luminaire's light efficiency: 134,7 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 30 (B10), 48 (B16), 43 (C10), 70 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP44. Impact resistant: IK04. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0. The luminaire can be made in CLO (Constant Lumen Output) version.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
5 x LED 3.66 W 655 lm 179 lm/W 4000 K 80
X-LINE LED 3250 MICRO-PRM E 24 840 LINE-EL / L-1407MM

X-LINE LED 3250 MICRO-PRM E 24 840 LINE-EL / L-1407MM

Light output 1

5 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1407 mm

Width: 63 mm

Height: 74 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 18.3 W

Appliance Class: I

Protection

IP: 44

IK: 04

Other operating numbers

Ambient temperature range: 5...30°C

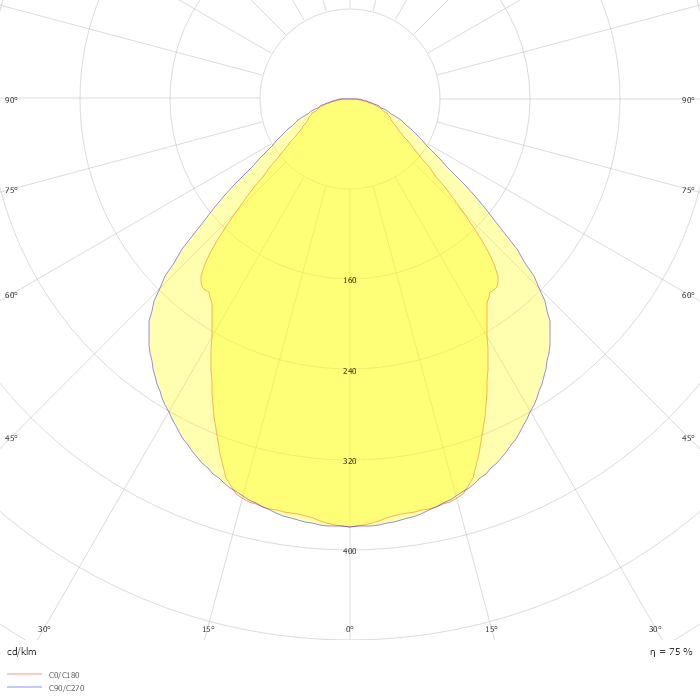

Photometric data

ZIP file

Download file
