Product data sheet

Rim R 9

007-901

Nimbus

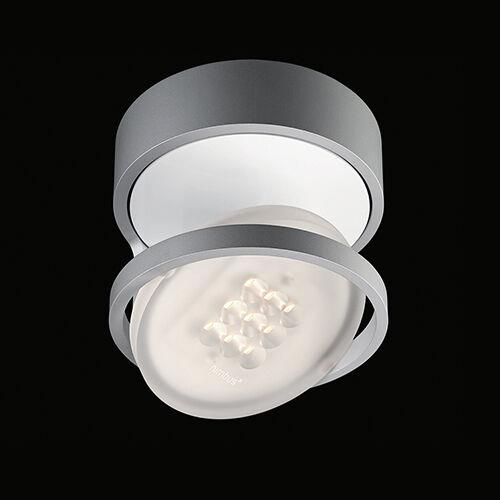

LED ceiling luminaire, continuously tiltable up to approx. 90° and rotatable up to approx. 350°, approx. 95 % direct beam, wide beam, the effect of wall illumination by means of secondary lighting is largely maintained even with the manoeuvrability of the luminaire head, version with integrated converter for connection to 230 volts ceiling outlets, body available in various surface finishes (brilliant white, frosted silver anodised, brilliant polished chrome, matt titanium grey anodised, matt gold anodised, matt black anodised), central cover brilliant white.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4 W 190 lm 46 lm/W 3000 K 90
Rim R 9

Rim R 9

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 85 mm

Width: 110 mm

Height: 110 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 4 W

Protection

IP: 20

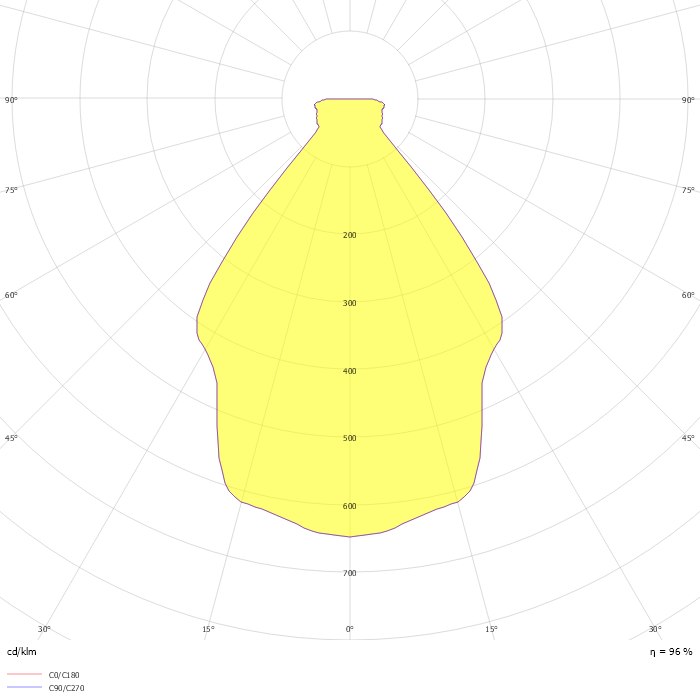

Photometric data

ZIP file
