Product data sheet

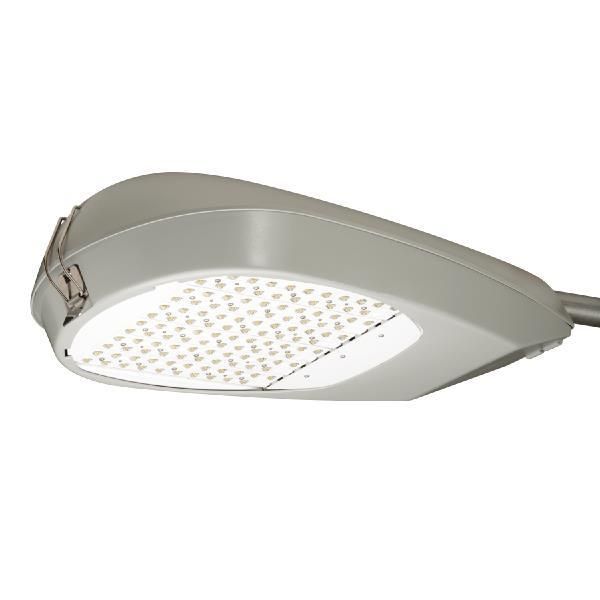

RL LED Roadway Large Cutoff Cobrahead


Cooper Lighting

Die-cast aluminum housing and door with stainless steel bail latch, Optical design creates consistent distribution and scalability, Choice of 12 high-efficiency, patented AccuLED Optics™, Standard in 4000K (+/- 275K) CCT and nominal 70 CRI, IP66 Rated LightBARs, Suitable for operation in -40°C to 40°C ambient environments, 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation, Proprietary circuit module withstands 10kV of transient line surge, Five-year warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 102.2 W 9044 lm 88 lm/W 3000 K 75
RL LED Roadway Large Cutoff Cobrahead

RL LED Roadway Large Cutoff Cobrahead

Light output 1 (integrated)


Mounting mode

Pole top mounted

Shape and measurements

Length: 52 mm

Width: 305 mm

Height: 10 mm




System power: 102.2 W


IP: 47

Photometric data

ZIP file
