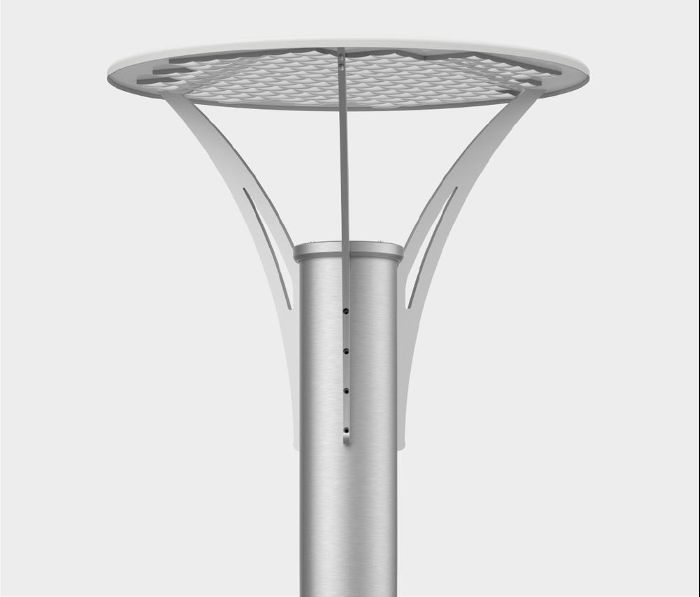

Lighting column made of aluminium. Designed to illuminate office buildings, parks and pedestrian routes. The pole and arms can be anodized in 10 colors. It has cap made of laminate painted in RAL 7047 colour and aluminium plate around the reflector in RAL 9016 colour. It has a protection class of IP 65 for the optical part and power input system. The expected service life of the product is L90B10 - 100,000 h. The input voltage frequency is 50/60Hz. Power factor ≥0.95. The column has 32 LEDs. It is possible to connect to an external control system via the DALI interface (optional support for an analogue 1-10V signal).
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 73 W | 12200 lm | 167 lm/W | 4000 K | 70 |
Mounting mode
Pole integrated
Shape and measurements
Length: 860 mm
Width: 860 mm
Height: 360 mm
Adjustability
Fixed
Design
Colour of housing: Silver gray, White
Electric
System power: 73 W
Protection
IP: 66

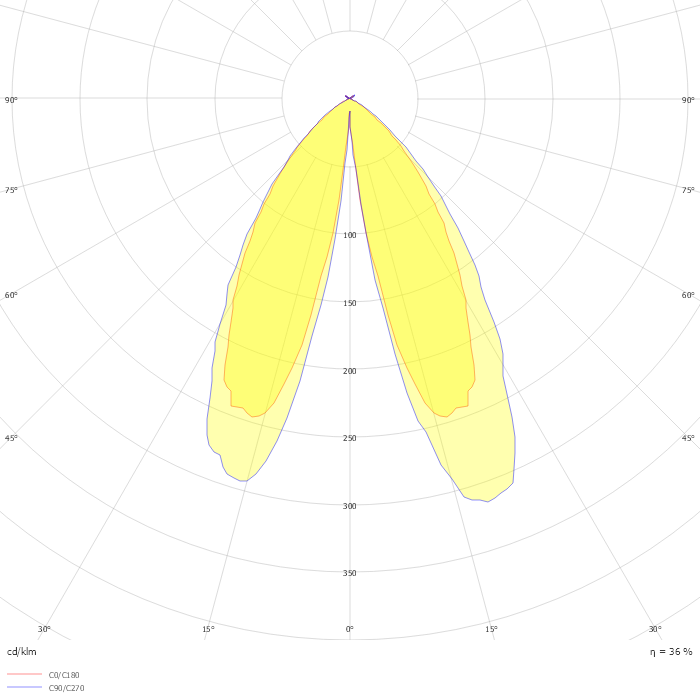

Photometric data
ZIP file
