Product data sheet

Centryxx

671840.002.1.07

RZB

Item Number: 671840.002.1.07 Series: Centryxx Type of Protection: IP 20 Protection Class: I Voltage: 230 V / 50 - 60 Hz Housing die-cast aluminium powder-coated, transparent plastic lens for wide-surface lighting, converter and storage battery integrated. Single battery system with integrated self-test and feedback through Dali bus only to the RZB 985405 monitoring system. Lamps (LED) included in delivery. Available Colours: white Type of Installation: Ceiling mounting Dimensions: L 180, B 180, H 32mm Lamp: LED Colour Temperature: 6500K Socket 1: without socket Operating Mode Lamp 1: Regulated power supply Rated Operating Time: 3h Emergency Lighting System: DALI-Sibe Safety Marks: F-mark Impact Protection: IK05 (0,70 Joule) Luminaire flux LED: 170lm System power: 4,2W Beam Angle: 126° Unified Glare Ratio: 33,1

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 4.2 W 170 lm 40 lm/W 5000 K 80
Centryxx

Centryxx

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 180 mm

Width: 180 mm

Height: 32 mm

Adjustability

Fixed

Electric

System power: 4.2 W

Protection

IP: 20

IK: 05

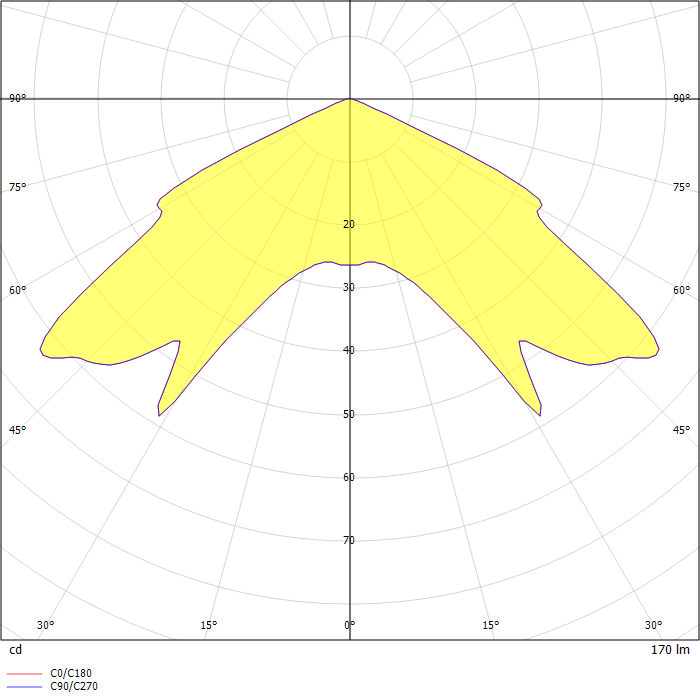

Photometric data

ZIP file
