Product data sheet

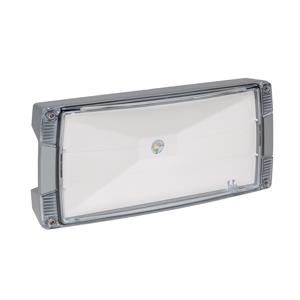

Atlantic LED II O CG-S

40071355604

Eaton Emergency Lighting

• LED safety luminaire with high protection class (IP66) for indoor and outdoor use • An integrated pressure equalization membrane reduces the effects of condensation in changing weather conditions • Luminaire with limited surface temperatures for use in operating areas with fi re hazard • Acc. HACCP suitable for use in food processing industry (not Outdoor Wall) • Robust construction from aluminium diecast and high impact resistant cover made of polycarbonate • Numerous knock-outs for cable entries and double terminal for through-wiring (Outdoor Wall only one cable entry) • High spacing by double optics technology and highly effi cient HighPower LEDs • Up to 28 m from luminaire to luminaire with optics for exit route illumination • Minimum service requirement due to high service life of the LEDs (up to 50.000 hours) • Shortened inspection effort due to CEWA GUARD technology • Automatic function monitoring of up to 20 luminaires per circuit • Reduced installation expenditures by STAR technology • Freely programmable mixed operation of the switching modes per luminaire in one circuit

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3.9 W 260 lm 67 lm/W 6000 K 65
Atlantic LED II O CG-S

Atlantic LED II O CG-S

Light output 1 (integrated, emergency)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 303 mm

Width: 136 mm

Height: 62 mm

Adjustability

Fixed

Electric

System power: 3.9 W

Suitable for feed-through wiring

Appliance Class: I

Information regarding emergency functions

Emergency lighting only

Emergency power supply: Central battery feed-in

Emergency sign: N/A

Protection

IP: 66

IK: 09

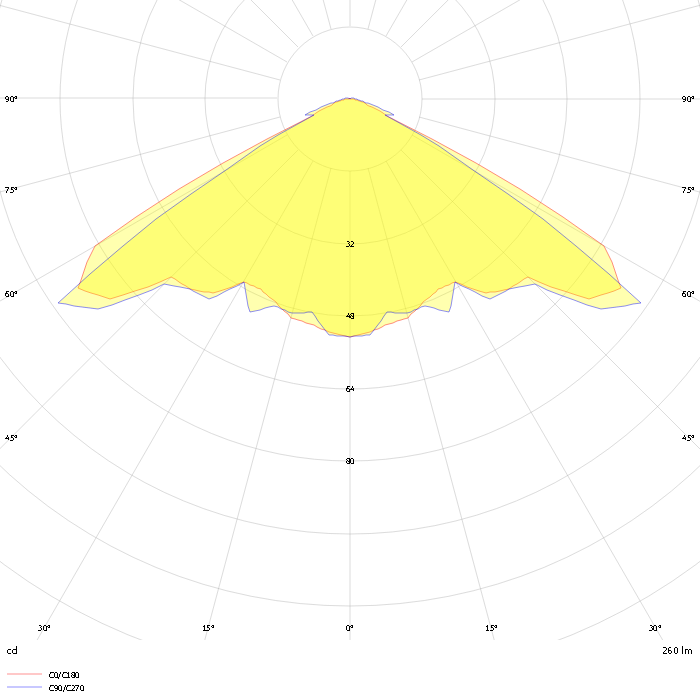

Photometric data

ZIP file
