Product data sheet

3460 Denia PRO 1 - LW - L-H<gt/>1 3000K CRI 70 13W CLD Grey9007

340040-39-0090-LW

Disano

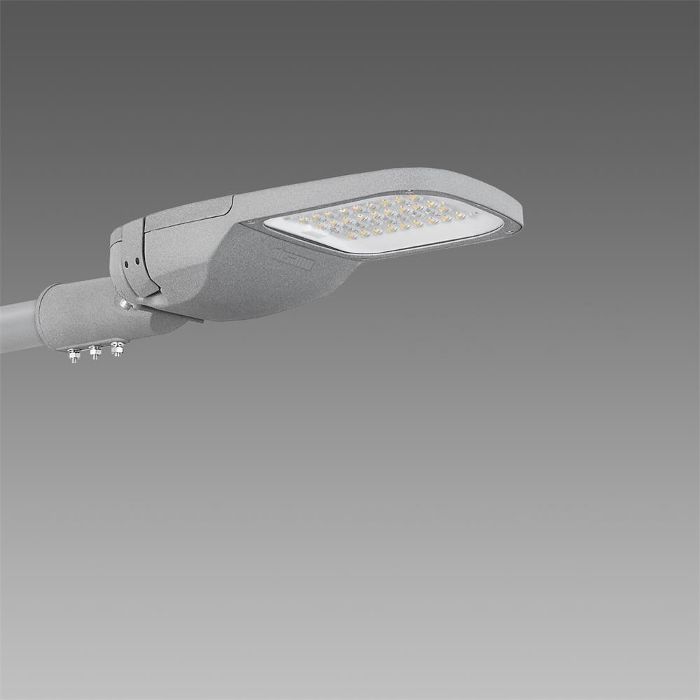

Product image 1: 3460 Denia PRO 1 - LW - L-H<gt/>1 3000K CRI 70 13W CLD Grey9007
Product image 1: 3460 Denia PRO 1 - LW - L-H<gt/>1 3000K CRI 70 13W CLD Grey9007

Product image 1: 3460 Denia PRO 1 - LW - L-H<gt/>1 3000K CRI 70 13W CLD Grey9007



IP
66

IK
09

Housing: in die-cast aluminium and designed with a very small surface exposed to wind. Cooling fins integrated in the cover. Attachment: in die-cast aluminium with clamps for fastening the fixture at different angles. Diffuser: extra-clear, tempered glass, 4 mm thick, resistant to thermal shock and impact (UNI-EN 12150-1:2001). Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Heat Sink: integrated Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Laboratory tests: compliant with third-party certified vibration tests pursuant to ANSI C136.31: Street Lighting - Luminaire Vibration. Test level: 3.0G Level 2 for bridge/overpass applications.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 13 W 1946 lm 150 lm/W 3000 K 70
3460 Denia PRO 1 - LW - L-H<gt/>1 3000K CRI 70 13W CLD Grey9007

3460 Denia PRO 1 - LW - L-H<gt/>1 3000K CRI 70 13W CLD Grey9007

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 455 mm

Width: 211 mm

Height: 91 mm

Adjustability

Fixed

Electric

System power: 13 W

Appliance Class: II

Protection

IP: 66

IK: 09

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -30...40°C

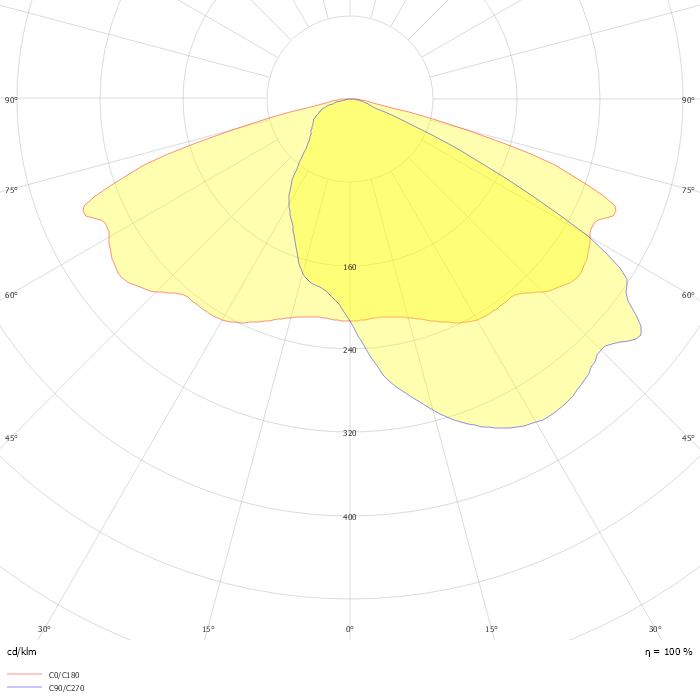

Photometric data

ZIP file
