Product data sheet

Circular Vertical Side ø900 Surface

CP4K-00X9AZOU05

LedsC4

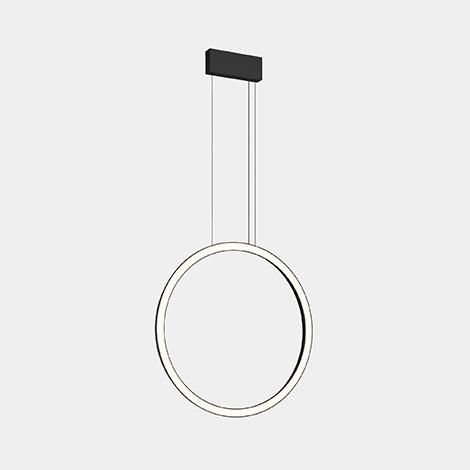

Product image 1: Circular Vertical Side ø900 Surface
Product image 1: Circular Vertical Side ø900 Surface

Product image 1: Circular Vertical Side ø900 Surface



IP
20

LedsC4 Circular Vertical Side ø900 Surface CP4K-00X9AZOU05V1 Pendant for indoor use. Structure finish: Black. Diffuser material: Softdiffuser. Diffuser finish: Opal. Warranty: 5 Years. Product net weight (Kg): 5 Product length (mm): 900 Product width or diameter (mm): 50 Product height (mm): 3700 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. Driver brand: MEANWELL. Maximum power of light source: 49.6W. Colour temperature: 4000K. Colour rendering index: 92. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 14.0. Photobiological risk: RG1. Real flux (lm): 2992. Real lm/W: 56. Voltage / frequency range: 90-305/50-60Hz. Voltage: 2,8. Equipment included: Yes. Total power: 53. Power factor: 0.90. Dimmable equipment included: ON-OFF.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 53 W 2992 lm 56 lm/W 4000 K 90
Circular Vertical Side ø900 Surface

Circular Vertical Side ø900 Surface

Light output 1

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 45 mm

Width: 900 mm

Height: 900 mm

Adjustability

Fixed

Electric

System power: 53 W

Appliance Class: I

Protection

IP: 20

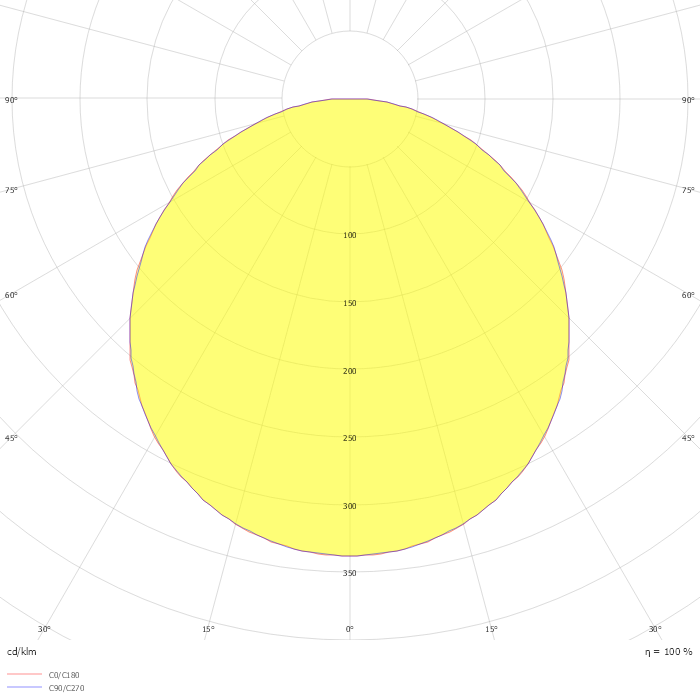

Photometric data

ZIP file

Download file
