Product data sheet

O46 LED 7000 830 360 CL

Glamox

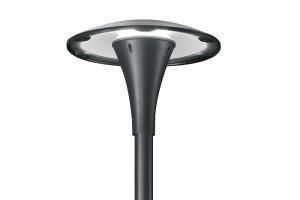

Product image 1: O46 LED 7000 830 360 CL
Product image 1: O46 LED 7000 830 360 CL

Product image 1: O46 LED 7000 830 360 CL



IP
66

IK
09

Light source: LED Lumen out: 6750 CRI: 80 Colour temperature: 3000 Total effect: 68 Lumen per watt: 99 Optic: CL Driver: DALI;HF;ND1;ND2;ZSU Main body material: Aluminium IP class: 66 IK class: 9

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 68 W 6750 lm 99 lm/W 3000 K 80
O46 LED 7000 830 360 CL

O46 LED 7000 830 360 CL

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Height: 370 mm

Diameter: 520 mm

Adjustability

Fixed

Electric

System power: 68 W

Appliance Class: II

Protection

IP: 66

IK: 09

Photometric data

ZIP file

Download file
