Product data sheet

E85-R WB LED E1

Glamox

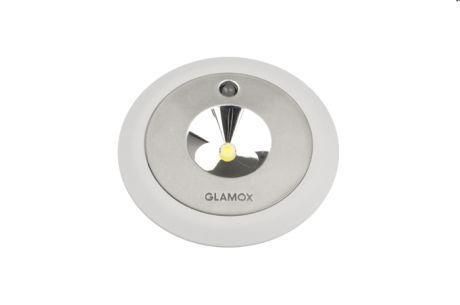

Product image 1: E85-R WB LED E1
Product image 1: E85-R WB LED E1

Product image 1: E85-R WB LED E1



IP
20

Body material & colour White painted aluminium with component box in polycarbonate. Mounting For recessed mounting. Spring-locking mounting clips are included. Connection 3 or 5 pole terminal block. Emergency system Supplied in standard (S), selftest (ST) or addressable (DALI) system for 1 or 3 hours duration.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 5 W 120 lm 24 lm/W 4000 K 80
E85-R WB LED E1

E85-R WB LED E1

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 80 mm

Width: 80 mm

Height: 54 mm

Adjustability

Fixed

Electric

System power: 5 W

Protection

IP: 20

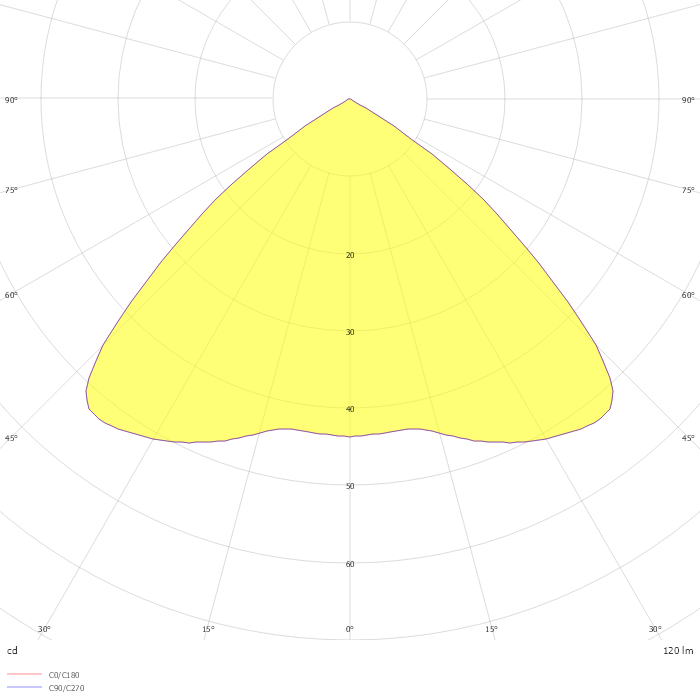

Photometric data

ZIP file

Download file
