Product data sheet

Ledge Recessed Circle Micro 600x600 4000K 42W WT

120927

DEFA Lighting

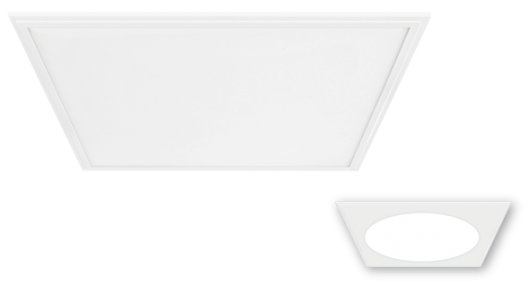

Product image 1: Ledge Recessed Circle Micro 600x600 4000K 42W WT
Product image 1: Ledge Recessed Circle Micro 600x600 4000K 42W WT

Product image 1: Ledge Recessed Circle Micro 600x600 4000K 42W WT



IP
40

Interior fitting to be recessed in T-profile ceiling. Frame in aluminium powder painted in white RAL 9010. Opal acrylic diffuser. Ledge is delivered ”plug&play”, complete with 1.5m 2-pol cable and plug from driver. DALI version supplied with 1.5m 4pol cable from driver, DALI entries with DA, DA marking. The driver and the LED panel are connected with 1m cable.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 42 W 3233 lm 77 lm/W 3953 K 80
Ledge Recessed Circle Micro 600x600 4000K 42W WT

Ledge Recessed Circle Micro 600x600 4000K 42W WT

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 12 mm

Diameter: 595 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 42 W

Appliance Class: II

Protection

IP: 40

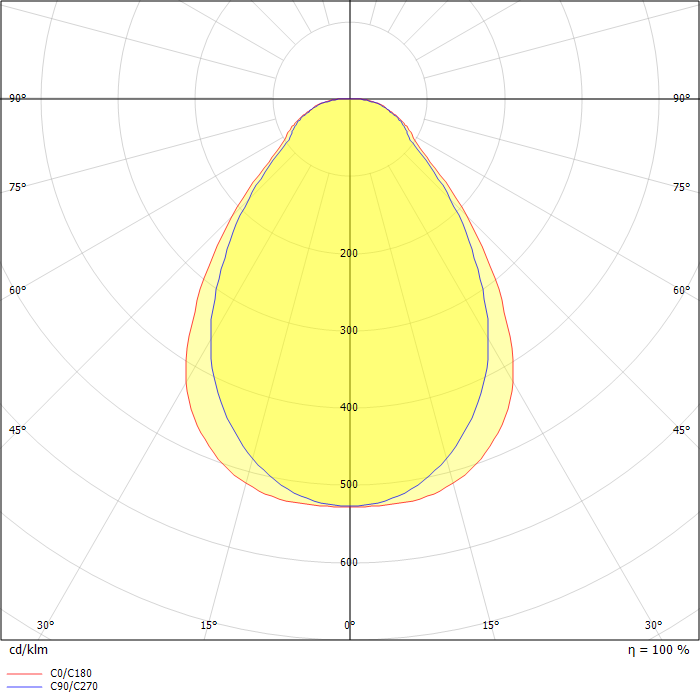

Photometric data

ZIP file

Download file
