Product data sheet

Iris Trimless Cone 50º

AV15-P6W9X3OSO7

LedsC4

LedsC4 Iris Trimless Cone 50º AV15-P6W9X3OSO7 Pendant for indoor use. Structure material: Aluminium. Structure finish: White/Grey. Warranty: 5 Years. Product net weight (Kg): 0.45 Product width or diameter (mm): 145 Product height (mm): 1705 Ø of the hole for recessing (mm): 57 Permitted ceiling thickness: 0-20 Class 2. Luminaire not suitable for coating with insulation materials. IP: IP43. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Maximum power of light source: 5.7W. Colour temperature: 3000K. Colour rendering index: 92. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 19.3. Photobiological risk: RG2. % de Flickering: +/- 3%. Real flux (lm): 771. Real lm/W: 103. Voltage / frequency range: 220-240V/50-60Hz. Voltage: 16.8. Equipment included: Yes. Total power: 7.5. Power factor: 0.90. Dimmable equipment included: ON-OFF.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 7.5 W 771 lm 103 lm/W 3000 K 90
Iris Trimless Cone 50º

Iris Trimless Cone 50º

Light output 1

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 120 mm

Width: 120 mm

Height: 147 mm

Adjustability

Fixed

Electric

System power: 7.5 W

Appliance Class: II

Protection

IP: 43

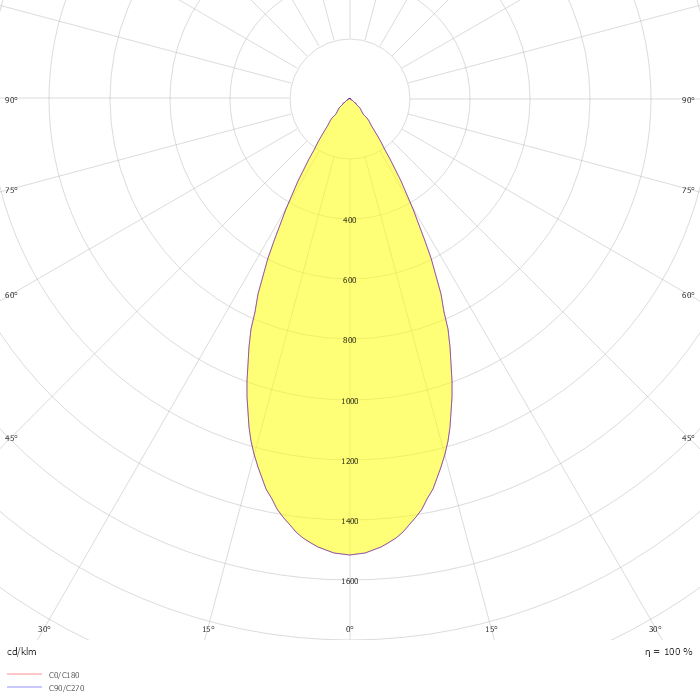

Photometric data

ZIP file
