Product data sheet

EPKL L120 UHR

Ecopak Lens

Dextra

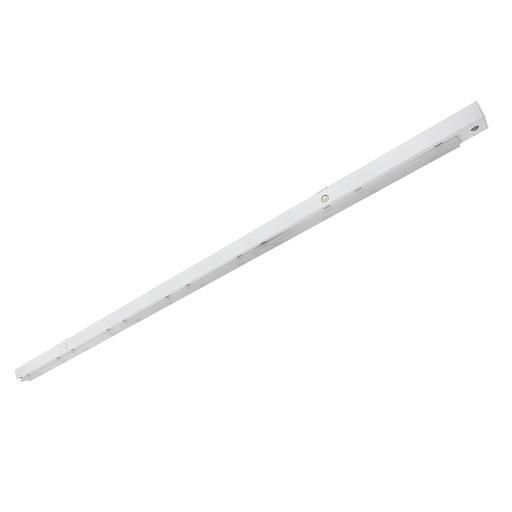

Ecopak Lens - 1700mm, Surface mounted batten luminaire, White powder painted metal body and steel spine, injection moulded polycarbonate Ultra High Rack lens. Options: LE3 - Lithium Emergency LS3 - Lithium Selftest LA3 - Lithium Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function) H - High Frequency Dimming (Analogue 1-10v) R21E - Reacta 21, On/Off R21C - Reacta 21, Corridor Mode* R44 - Daylight regulating and Occupancy Sensor RCS - Reacta-Control Wireless Sensor RLS - Reacta-Link Wireless Sensor *Bi-Level Dimming. Will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 72.7 W 11640 lm 160 lm/W 4000 K 80
EPKL L120 UHR

EPKL L120 UHR

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1750 mm

Width: 70 mm

Height: 42 mm

Adjustability

Fixed

Electric

System power: 72.7 W

Controller: DALI

Integrated sensors

Integrated sensors: Motion sensor, Presence sensor

Protection

IP: 20

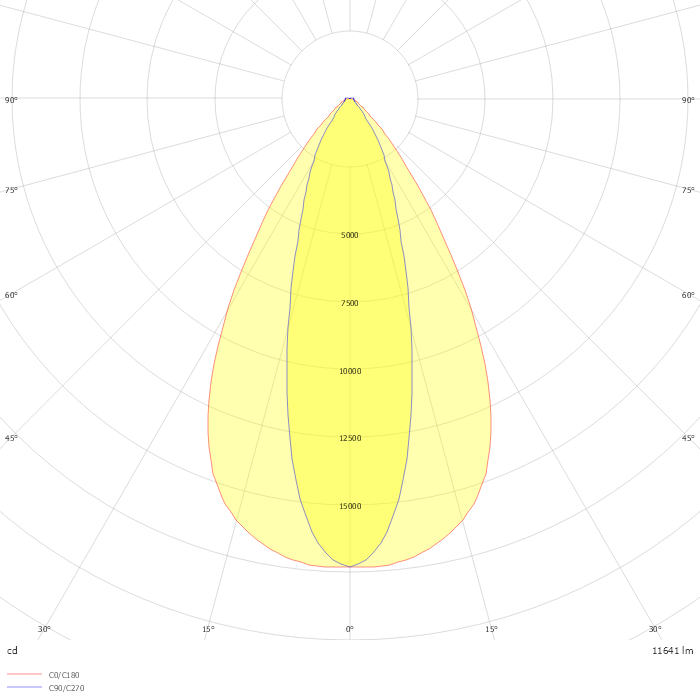

Photometric data

ZIP file
