Product data sheet

ECLPENDANTJRVW_BLACK_BRACKET

ECLPENDANTJRVW_2800K_20DEG

Prolights

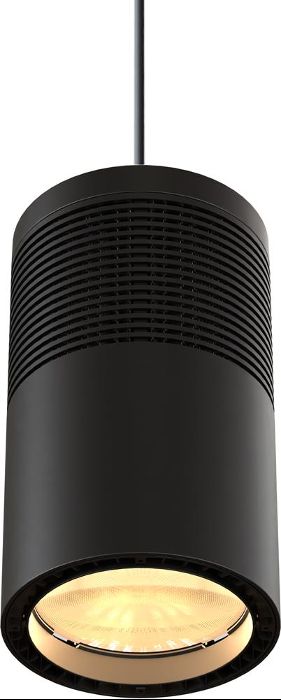

Product image 1: ECLPENDANTJRVW_BLACK_BRACKET
Product image 1: ECLPENDANTJRVW_BLACK_BRACKET

Product image 1: ECLPENDANTJRVW_BLACK_BRACKET



Product image 2: ECLPENDANTJRVW_BLACK_BRACKET

Product image 2: ECLPENDANTJRVW_BLACK_BRACKET



IP
20

IK
08

The EclPendant JrVW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly. This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control. The EclPendant JrVW has a 100-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability. Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX). The EclPendant JrVW was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant JrVW series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections. The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience. The EclPendant JrVW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan. NOTE: the hanging bracket does not come with the product Main features: 100W LED source power, Variable White with passive cooling AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX) Extensive mounting option possibilities, optics and accessories are all easily changeable

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 112.4 W 6645 lm 59 lm/W 2821 K 96
ECLPENDANTJRVW_BLACK_BRACKET

ECLPENDANTJRVW_BLACK_BRACKET

Light output 1

1 x LED

Mounting mode

Pendant, Ceiling mounted, Ceiling recessed

Shape and measurements

Length: 243 mm

Width: 48 mm

Height: 282 mm

Adjustability

Rotatable, Free, Height adjustable

Electric

System power: 112.4 W

Controller: DMX, DALI

Appliance Class: I

Protection

IP: 20

IK: 08

Surface temperature: 70°C

Designation labels: CE
