Zenith-M 38° Beam LED - 20W - 4000K

ZEN18077

Thorlux Lighting

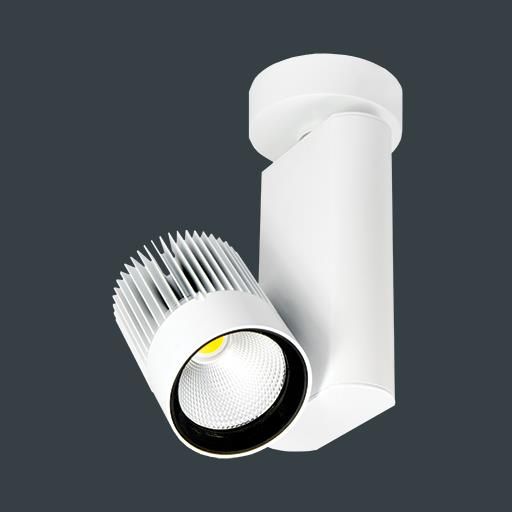

Product image 1: Zenith-M 38° Beam LED - 20W - 4000K
Product image 1: Zenith-M 38° Beam LED - 20W - 4000K

Product image 1: Zenith-M 38° Beam LED - 20W - 4000K



IP
20

Ceiling mounted LED display luminaires with integral control gear. 300° azimuth and 180° vertical adjustment. 14W or 20W - 30° or 38° beam versions. Applications: office, retail, reception areas, restaurants, hospitality areas.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 20 W 2110 lm 88 lm/W 4000 K 90
Zenith-M 38° Beam LED - 20W - 4000K

Zenith-M 38° Beam LED - 20W - 4000K

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 100 mm

Diameter: 77 mm

Adjustability

Free

Electric

System power: 24 W

Protection

IP: 20

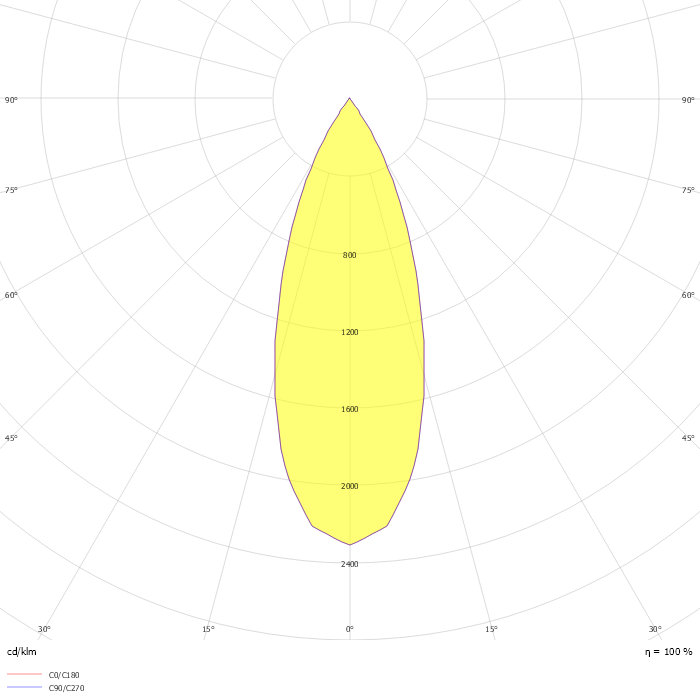

Photometric data

ZIP file

Download file
