Product data sheet

OPTiLED 1750Lm 24W 30x30 Recessed LED Backlight Luminaire, Ac Direct. PS Diffuser,3000 K

M521ESSLED1830-W

Mazinoor

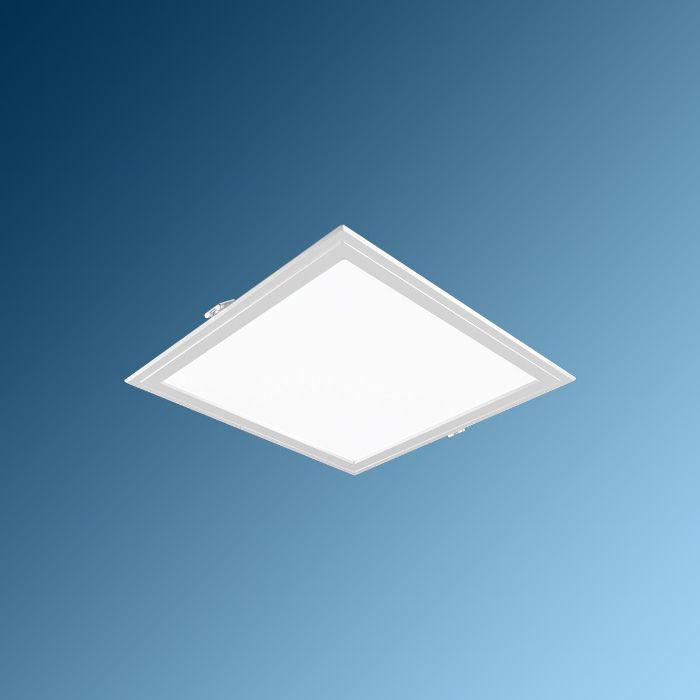

Product image 1: OPTiLED  1750Lm 24W 30x30  Recessed LED Backlight Luminaire, Ac Direct. PS Diffuser,3000 K
Product image 1: OPTiLED  1750Lm 24W 30x30  Recessed LED Backlight Luminaire, Ac Direct. PS Diffuser,3000 K

Product image 1: OPTiLED 1750Lm 24W 30x30 Recessed LED Backlight Luminaire, Ac Direct. PS Diffuser,3000 K



OPTiLED recessed and surface mount luminaire is designed and manufactured by Mazinoor for modern office and commercial lighting applications in smaller areas. Uniform light distribution, energy saving, glare control, and aesthetically beautiful and minimal design are among the highlights of this luminaire. Suitable for modern offices and commercial buildings where aesthetically beautiful design, uniform light distribution, durability, ease of maintenance, glare control, and energy saving are required such as banks, modern offices, universities, schools, hospitals, hotels, sanitary area, hallways, stairways, etc.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 24 W 1750 lm 73 lm/W 3000 K 80
OPTiLED  1750Lm 24W 30x30  Recessed LED Backlight Luminaire, Ac Direct. PS Diffuser,3000 K

OPTiLED 1750Lm 24W 30x30 Recessed LED Backlight Luminaire, Ac Direct. PS Diffuser,3000 K

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 297 mm

Width: 297 mm

Height: 32 mm

Adjustability

Fixed

Electric

System power: 24 W

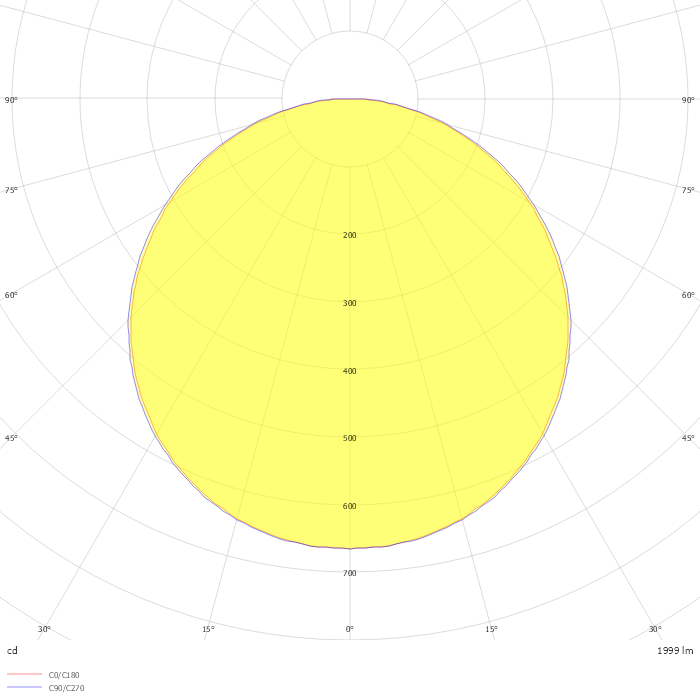

Photometric data

ZIP file
