Product data sheet

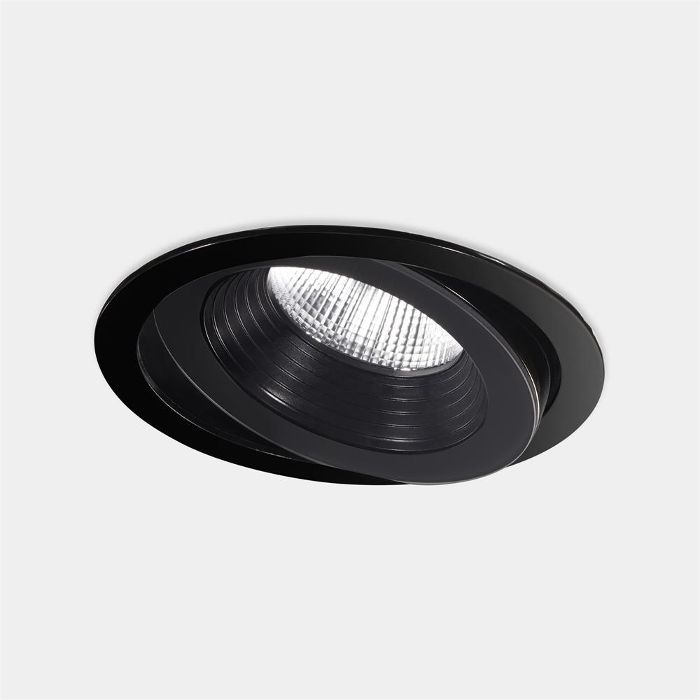

Dako Adjustable ø200mm

15-E105-05-CL

LedsC4

LedsC4 Dako Adjustable ø200mm 15-E105-05-CL Downlight for outdoor use. For downlighting. Adjustable light source. Structure material: Aluminium. Structure finish: Black. Diffuser material: Glass. Diffuser finish: Transparent. UV protection. Warranty: 5 Years. Max. temperature: 50ºC. Product net weight (Kg): 1.38 Product width or diameter (mm): 200 Product height (mm): 110 Product aperture (mm): 3 Ø of the hole for recessing (mm): 180 Permitted ceiling thickness: 0-20 Class 2. Luminaire not suitable for coating with insulation materials. Glow wire test: 850. IP: IP66. IK: IK07. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Maximum power of light source: 18W. Colour temperature: 3000K. Colour rendering index: 80. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 13.0. Photobiological risk: RG1. Real flux (lm): 1821. Real lm/W: 91. Voltage / frequency range: 100-240/50-60Hz. Voltage: 36. Equipment included: Yes. Total power: 20. Power factor: 0.90. Dimmable equipment included: ON-OFF.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 20 W 1784 lm 89 lm/W 3000 K 80
1 x LED 20 W 1821 lm 91 lm/W 3000 K 80
Dako Adjustable ø200mm

Dako Adjustable ø200mm

Light output 1

1 x LED

Dako Adjustable ø200mm

Dako Adjustable ø200mm

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 200 mm

Width: 200 mm

Height: 5 mm

Adjustability

Fixed

Electric

System power: 20 W

Appliance Class: II

Protection

IP: 66

IK: 07

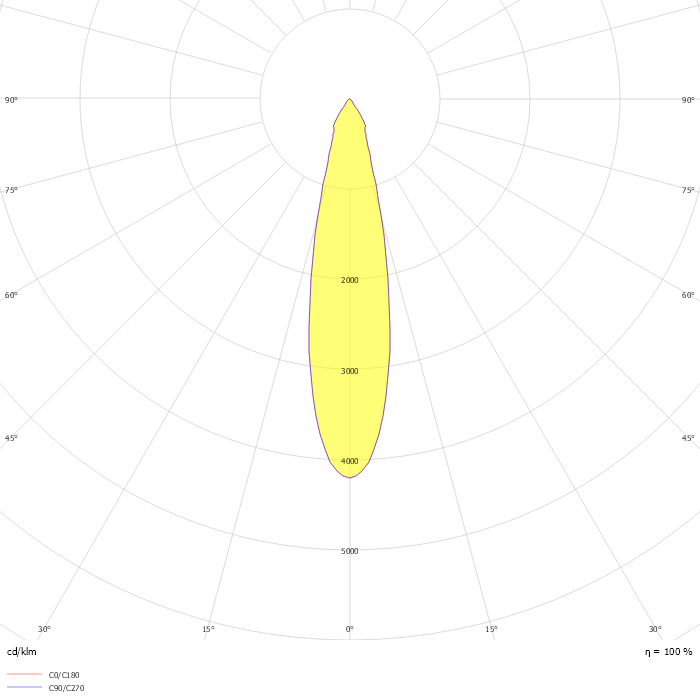

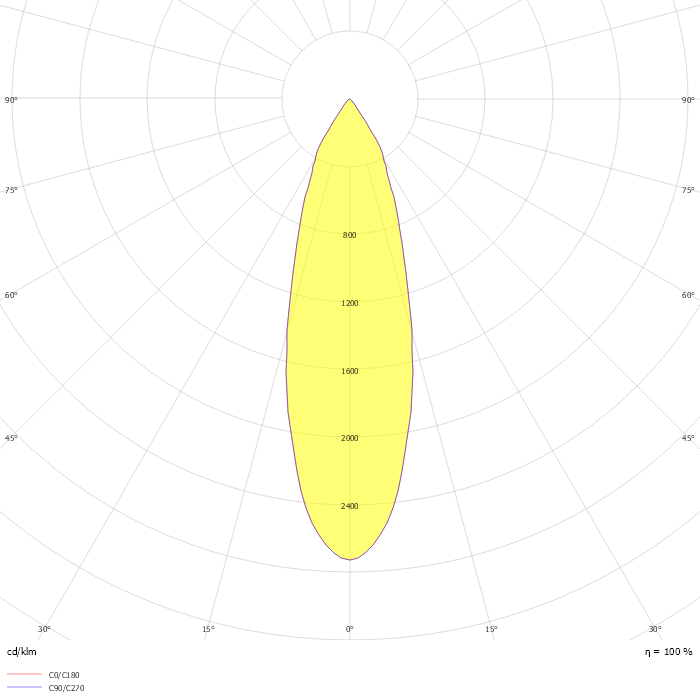

Photometric data

ZIP file
