Product data sheet

BAYMASTER LED 30000 LUMENS MEDIUM BEAM 5000K CCT CLEAR GLASS

I/BHLPL2CGM

Appleton (Emerson EGS)

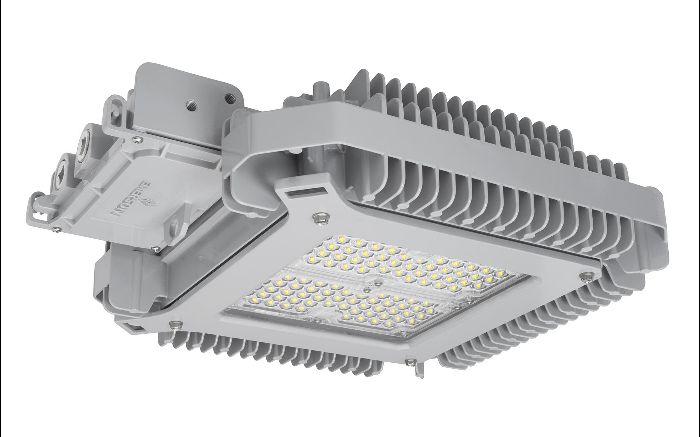

Product image 1: BAYMASTER LED 30000 LUMENS MEDIUM BEAM 5000K CCT CLEAR GLASS
Product image 1: BAYMASTER LED 30000 LUMENS MEDIUM BEAM 5000K CCT CLEAR GLASS

Product image 1: BAYMASTER LED 30000 LUMENS MEDIUM BEAM 5000K CCT CLEAR GLASS



IP
67

BAYMASTER LED High Lumen Highbay Series Pendant/Ceiling Mount 30000 LUMENS, 5000 K CCT, NEMA TYPE V MEDIUM Yoke Mount BU-120-277 Vac, 50/60Hz, BH-347-480 Vac , 50/60Hz 3/4" NPT Hub NO OPTICS CLEAR GLASS Class I, Division 2, Groups A, B, C, D Class I, Zone 2 GROUP IIC TYPE 3R, 4, 4X IP66/67 Suitable for Use in Wet Locations Marine Outside (Salt Water) Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 226.3 W 30371 lm 134 lm/W 5181 K 86
BAYMASTER LED 30000 LUMENS MEDIUM BEAM 5000K CCT CLEAR GLASS

BAYMASTER LED 30000 LUMENS MEDIUM BEAM 5000K CCT CLEAR GLASS

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 405 mm

Width: 405 mm

Height: 184 mm

Adjustability

Fixed

Electric

System power: 226.3 W

Appliance Class: II

Protection

IP: 67

Explosion zone suitability: 2

Photometric data

ZIP file

Download file
