Product data sheet

RUBIN CLEAN LED 10400 MICRO-PRM SH E IP65 34 840 / 1220X620MM

19.4066.4221.34

LUXIONA

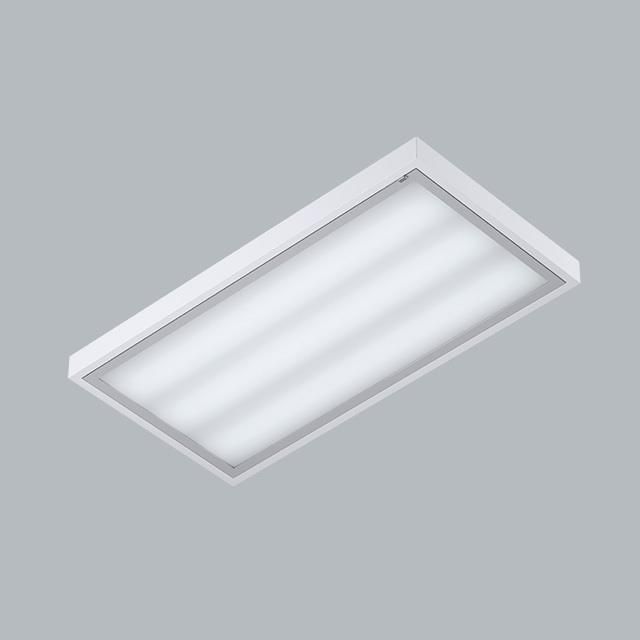

Product image 1: RUBIN CLEAN LED 10400 MICRO-PRM SH E IP65 34 840 / 1220X620MM
Product image 1: RUBIN CLEAN LED 10400 MICRO-PRM SH E IP65 34 840 / 1220X620MM

Product image 1: RUBIN CLEAN LED 10400 MICRO-PRM SH E IP65 34 840 / 1220X620MM



IP
65

IK
08

Indoor luminaire. Assembly: surface mounted on ceiling. The body material is steel sheet. Colour - RAL 9016 (white). Luminaire dimensions: 1220 x 620 x 78 mm. Diffuser: Micro-PRM SH (micro-prismatic diffuser PMMA with hardened glass). The efficiency of the optical system is 71,99%. Beam angle: (C0-C180) / (C90-C270) - 88° / 91,8°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 (1) / 147000 (2) h L80/B10 (1) / L70/B50 (2). Luminaire luminous flux: 7536 lm. Power of luminaire: 56,3 W. Luminaire's light efficiency: 133,9 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 16 (B10), 26 (B16), 23 (C10), 37 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP65. Impact resistant: IK08. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
8 x LED 7.038 W 1308 lm 186 lm/W 4000 K 80
RUBIN CLEAN LED 10400 MICRO-PRM SH E IP65 34 840 / 1220X620MM

RUBIN CLEAN LED 10400 MICRO-PRM SH E IP65 34 840 / 1220X620MM

Light output 1

8 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1220 mm

Width: 620 mm

Height: 78 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 56.3 W

Appliance Class: I

Protection

IP: 65

IK: 08

Other operating numbers

Ambient temperature range: 5...30°C

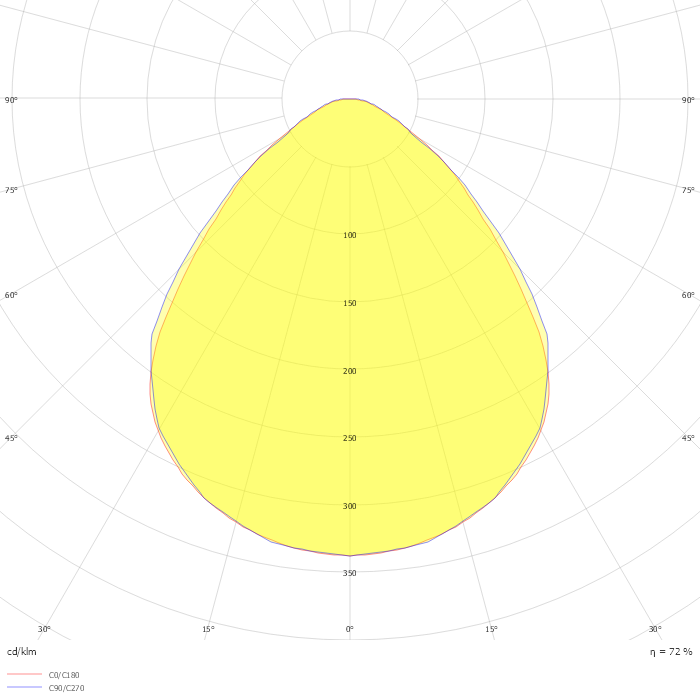

Photometric data

ZIP file

Download file
