Product data sheet

CYL PRO

582100.0031.76

RZB

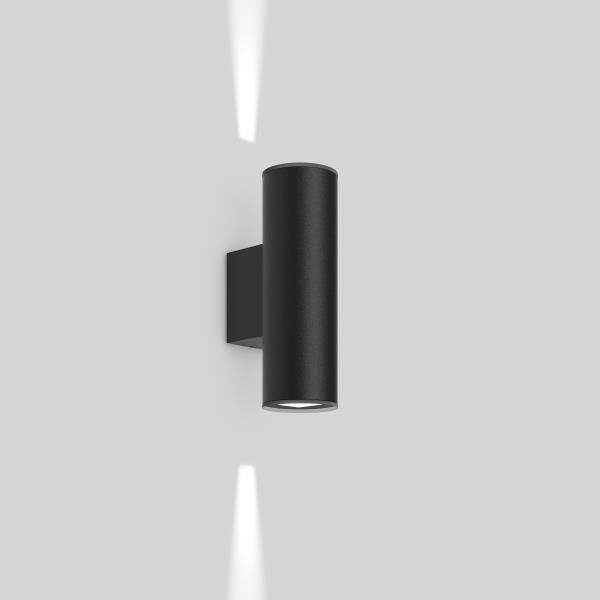

Series: CYL PRO Wallscaping: elegant and innovative wall luminaire for accent lighting. Housing made of corrosion-resistant die-cast aluminium, seawater resistant powder-coated. With membrane valve as a standard to avoid condensed water. Cover made of ceramic-coated toughened glass with bayonet lock. COB LED with socket for easy replacement. Light emission: up and down. Spot lens, narrow beam. Fixing on the wall outside the sealed volume, drill hole deviations can be compensated. Screwless luminaire fixing via RZB Gravolock System. Electrical plug and play featuring quick connector. Cable entry granting two cables for loop-through. Driver integrated. Dimmable DALI. MultiLumen: 3 steps adjustable luminous flux. Factory setting is the highest luminous flux. Colour: anthracite metallic (DB703) Length: 100 mm Width: 154 mm Height: 307 mm Lamp: LED System power: 13 W Rated luminous flux: 400 lm Luminous efficiency: 31 lm/W System power 2: 19 W Rated luminous flux 2: 600 lm System power 3: 28 W Rated luminous flux 3: 800 lm Control gear: Converter, dimmable, DALI Protection class: I Type of protection: IP 65

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 28 W 800 lm 29 lm/W 3000 K 80
1 x LED 19 W 600 lm 32 lm/W 3000 K 80
1 x LED 13 W 400 lm 31 lm/W 3000 K 80
CYL PRO

CYL PRO

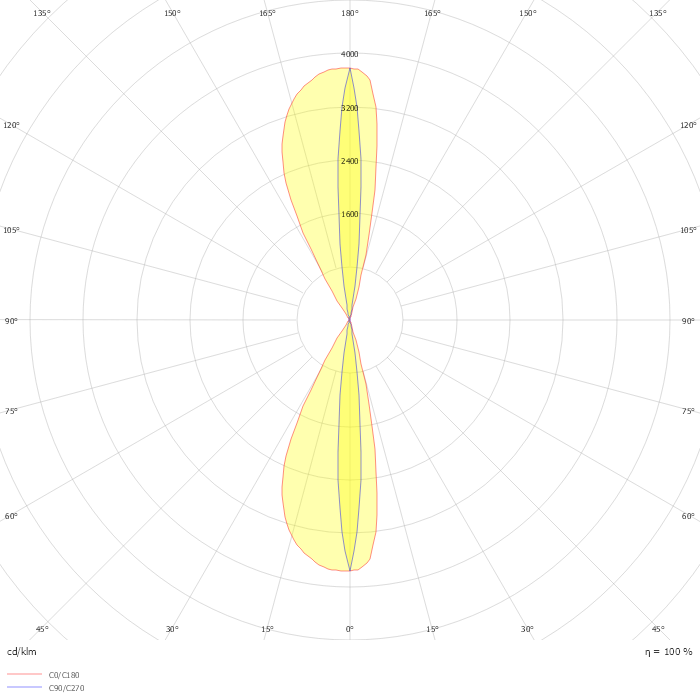

Light output 1

1 x LED

CYL PRO

CYL PRO

Light output 1

1 x LED

CYL PRO

CYL PRO

Light output 1

1 x LED

Mounting mode

Wall mounted

Shape and measurements

Length: 154 mm

Width: 100 mm

Height: 307 mm

Adjustability

Fixed

Electric

System power: 13-28 W

Protection

IP: 65

IK: 07

Photometric data

ZIP file
