Article name

StreetSense LED Street Light 23400 Lumens, Type III Distribution, Tempered Glass Lens

Article number

SL3N5SLGG

Please fill in the following fields, so that the manufacturer can reply to your request

Your name  *


Your email  *


Your country  *

Your message

The following fields can be added optionally

Your company


Your profession

After clicking the "SEND" button, your request will be forwareded to Dialight. The manufacturer will get in touch with you by the given email address.

Privacy statement  *

Cancel

Your products (0)

Product data sheet

StreetSense LED Street Light 23400 Lumens, Type III Distribution, Tempered Glass Lens

SL3N5SLGG

Dialight

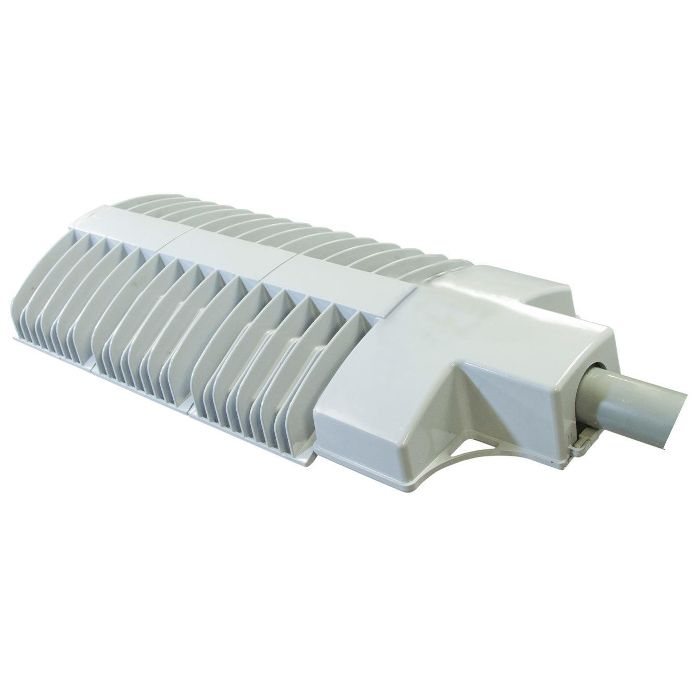

Product image 1: StreetSense LED Street Light 23400 Lumens, Type III Distribution, Tempered Glass Lens
Product image 1: StreetSense LED Street Light 23400 Lumens, Type III Distribution, Tempered Glass Lens

Product image 1: StreetSense LED Street Light 23400 Lumens, Type III Distribution, Tempered Glass Lens



IP
66

IK
07

StreetSense LED Street Light 20,198 Lumens 251 Watts 100-277V AC Neutral White, 70CRI Tempered Glass Lens CSA C22.2 No. 250.0-08 CE UL 1598 (suitable for wet locations) IES Type III Distribution IP65 (a cable gland with a minimum ingress protection rating of IP54 is required to maintain certification) LM79 Tested IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 251.8 W 20251 lm 80 lm/W 3783 K 84
StreetSense LED Street Light 23400 Lumens, Type III Distribution, Tempered Glass Lens

StreetSense LED Street Light 23400 Lumens, Type III Distribution, Tempered Glass Lens

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted, Pendant

Shape and measurements

Length: 372 mm

Width: 880 mm

Height: 122 mm

Weight: 7.26 kg

Adjustability

Rotatable, Tiltable

Electric

System power: 251.8 W

Appliance Class: I

Protection

IP: 66

IK: 07

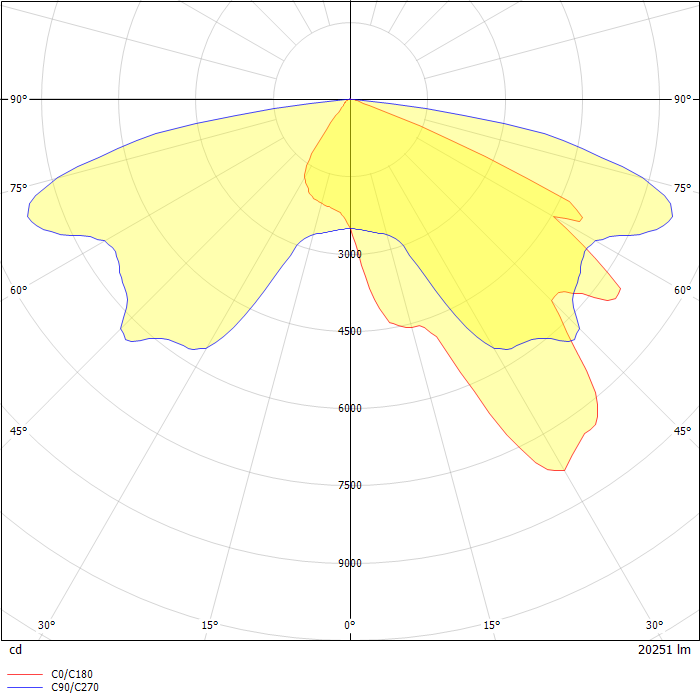

Photometric data

ZIP file

Download file
