Product data sheet
SPY 39 TRIMLESS IN 93040
24123 9330
Delta Light

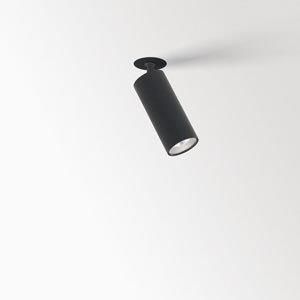

Luminaire, ceiling recessed (indoor use) from Deltalight, named SPY 39 TRIMLESS IN 93040, available in the colour(s): black, brushed alu, brushed anthracite, brushed copper, brushed gold, brushed old bronze, flemish bronze, flemish gold, full white, gold coloured, piano black, white. For recessed mounting, a round opening (for installing a custom mounting kit) is needed and a min. depth for recessing of 130 mm. This luminaire is equipped with LED array 5,8-8,6W / CRI>90 (R9: 52) / 3000K / 787-1089lm with an optional driver, suitable for currents of 350mA to 500mA. Light distributor: reflector 40°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 787 lm | 131 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 787 lm | 131 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 787 lm | 131 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 787 lm | 131 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 1 mm
Diameter: 39 mm
Electric
System power: 6-9 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

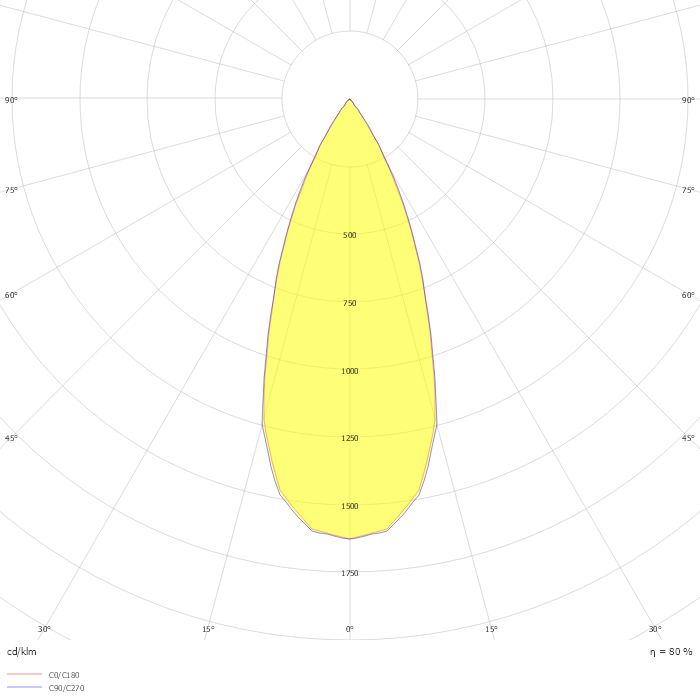

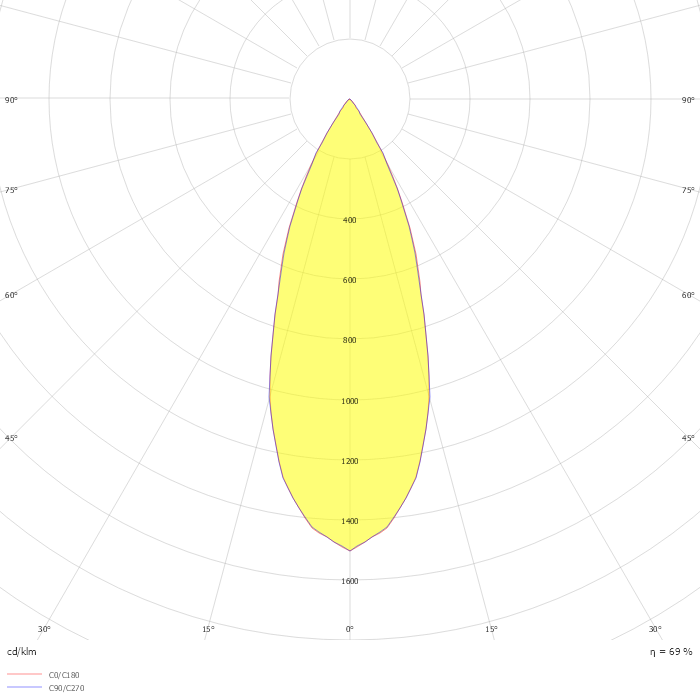

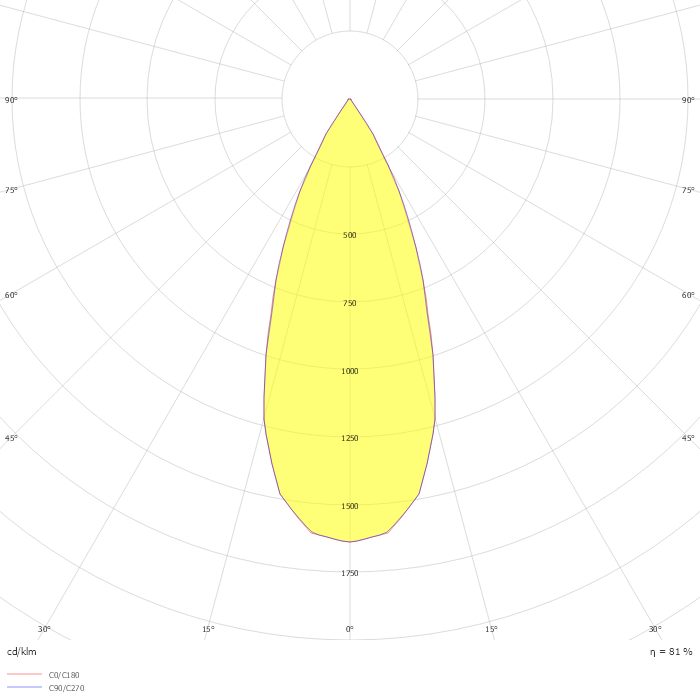

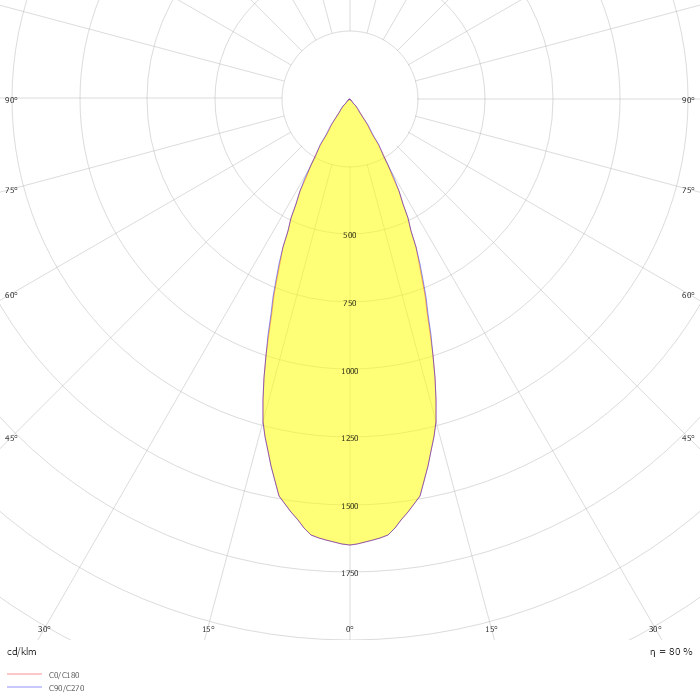

Photometric data
ZIP file
