Product data sheet

OPTILUX S 15000 Lm 100W LED Area lighting Luminaire ,Clear Temperad Glass , Gray Body ,4000K

M311SWLED6740-S

Mazinoor

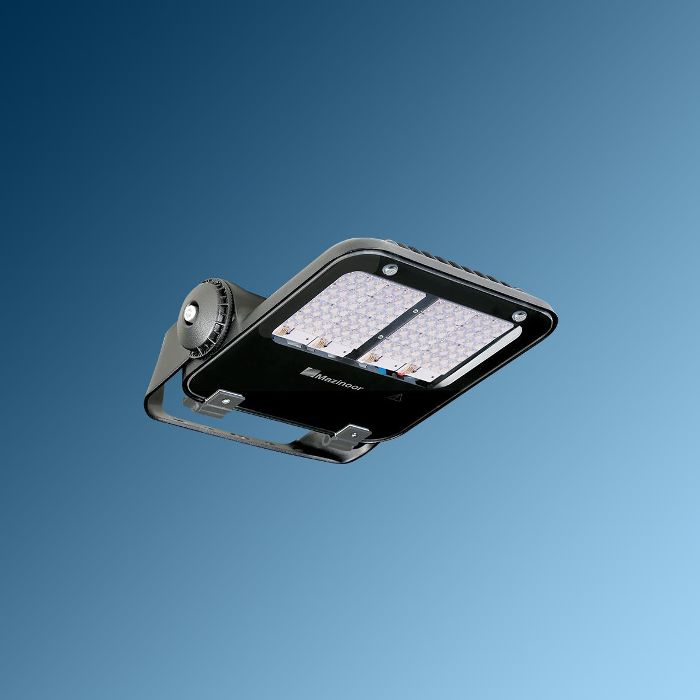

Product image 1: OPTILUX S 15000 Lm 100W LED Area lighting Luminaire ,Clear Temperad Glass , Gray Body ,4000K
Product image 1: OPTILUX S 15000 Lm 100W LED Area lighting Luminaire ,Clear Temperad Glass , Gray Body ,4000K

Product image 1: OPTILUX S 15000 Lm 100W LED Area lighting Luminaire ,Clear Temperad Glass , Gray Body ,4000K



IP
66

OPTILUX LED luminaire is Mazinoor state of the art design for flood light and street light application. Durability, High ingress protection (IP66), various choices of reflectors to suit different lighting application, the aerodynamic shape, and the various mounting possibility on the ground, walls, pole, etc. are among the highlights of OPTiLUX.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 100 W 15000 lm 150 lm/W 4000 K 70
OPTILUX S 15000 Lm 100W LED Area lighting Luminaire ,Clear Temperad Glass , Gray Body ,4000K

OPTILUX S 15000 Lm 100W LED Area lighting Luminaire ,Clear Temperad Glass , Gray Body ,4000K

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 320 mm

Width: 297 mm

Height: 159 mm

Adjustability

Fixed

Electric

System power: 100 W

Protection

IP: 66

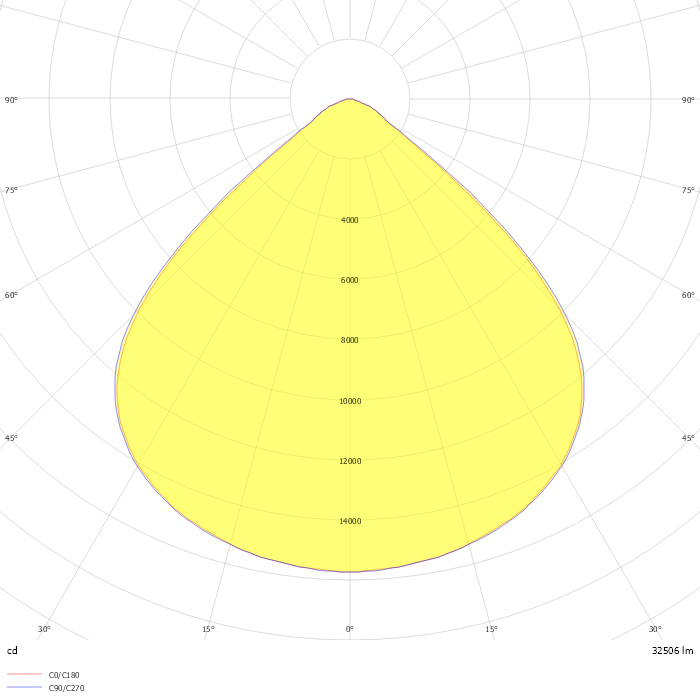

Photometric data

ZIP file

Download file
