Product data sheet

Brass Catenary

3435180

Zero

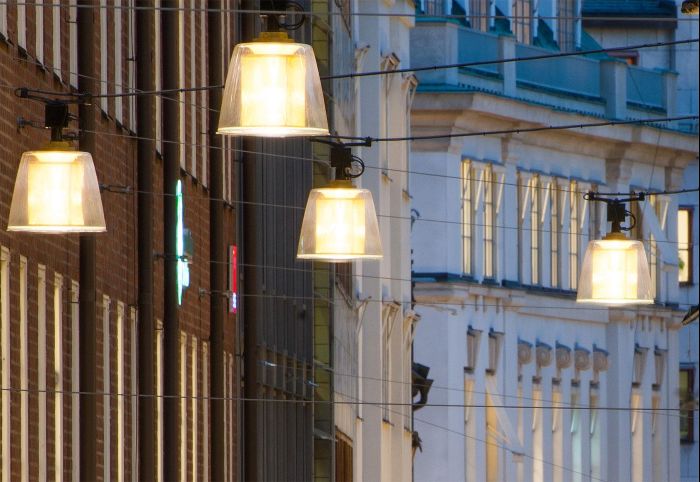

Product image 1: Brass Catenary
Product image 1: Brass Catenary

Product image 1: Brass Catenary



IP
44

IK
08

Finish: Painted metal, pearl gold (RAL 1036). Shade in transparent acrylic. Brass net and opal acrylic diffuser. LED info: Luminaire Luminous Flux 2145LM System power 32W CCT 3000K. SDCM 3. CRI >80 Installation: On wire. Connection: Double conduit entry. Not suitable for installation where lights may be exposed to corrosion by sea water and sea air. Models suitable for installation near coast lines can be quoted on request.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 32 W 2145 lm 67 lm/W 3114 K 80
Brass Catenary

Brass Catenary

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 524 mm

Width: 524 mm

Height: 462 mm

Adjustability

Fixed

Electric

System power: 32 W

Controller: DALI

Suitable for feed-through wiring

Appliance Class: I

Protection

IP: 44

IK: 08

Designation labels: CE

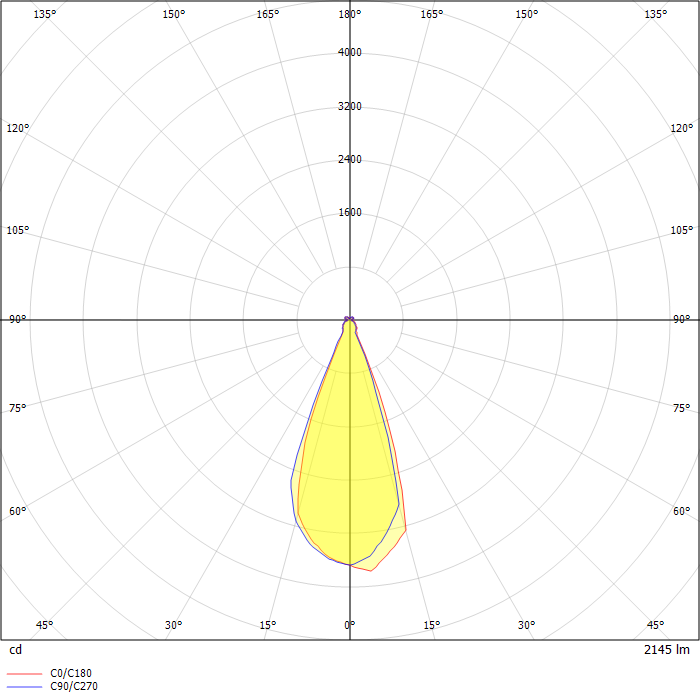

Photometric data

ZIP file

Download file
