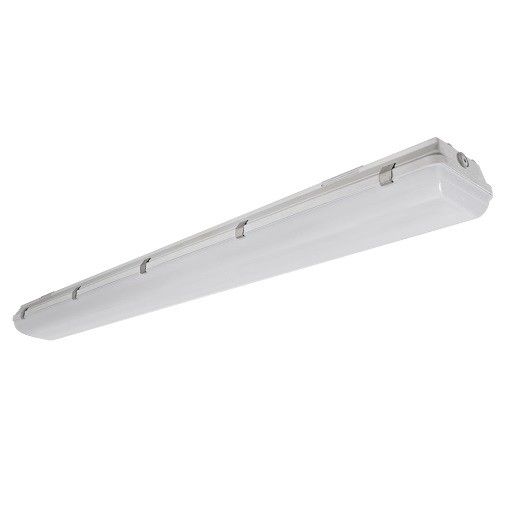

Product data sheet

TYP L132 PC 5T

TYPHON

Dextra

Typhon - 1500mm Twin, IP65 Surface mounted moisture resistant luminaire. GRP body, polycarbonate diffuser. Complete with tooled access Stainless steel diffuser retaining clips. Options: LE3 - Lithium Emergency (408 lumen output) LS3 - Lithium Selftest LA3 - Lithium Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function) H - High Frequency Dimming (Analogue 1-10v) R25E - Reacta 25, On / Off High Frequency R25C - Reacta 25, Corridor Mode* RLM - Reacta-Link Wireless Microwave Presence & Bright Out RCME - Reacta-Control Wireless Microwave On/Off RCMC - Reacta-Control Wireless Microwave Corridor Mode* *Bi-Level Dimming. Will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 78.5 W 11331 lm 144 lm/W 4000 K 80
TYP L132 PC 5T

TYP L132 PC 5T

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 1567 mm

Width: 171 mm

Height: 105 mm

Adjustability

Fixed

Electric

System power: 78.5 W

Ballast: ECG

Controller: DALI

Integrated sensors

Integrated sensors: Daylight sensor, Motion sensor, Presence sensor

Protection

IP: 65

Designation labels: CE

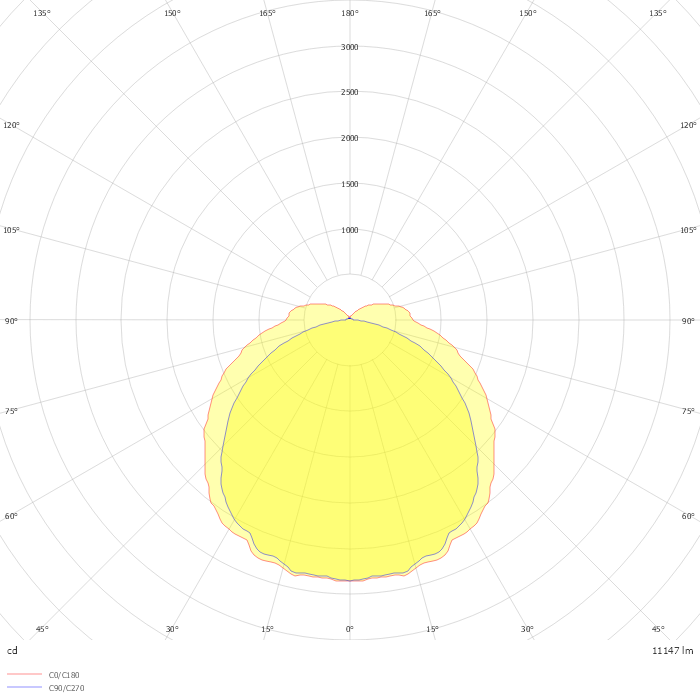

Photometric data

ZIP file
