Product data sheet

Pollux LED Square 1500 830

759421

Nokalux

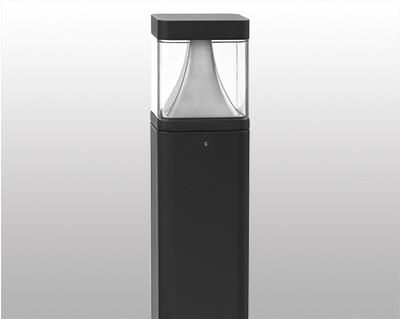

Product image 1: Pollux LED Square 1500 830
Product image 1: Pollux LED Square 1500 830

Product image 1: Pollux LED Square 1500 830



IP
54

IK
08

Kvadratisk stilren pollare IP 54. Stomme av gjuten aluminium, fosfaterad samt lackerad grafit RAL 7016 av UV-beständig polyesterpulverlack. Klar kupa av polykarbonat. Rostfria skruvar för driftdonsdel. Reflektor av aluminium. För montering i fundament eller ingjutning. Se tillbehör. Driftdonsinsats med 5-polig 10mm² skruvplint. Försedd med säkring och överspänningsskydd 10kV. Livslängd L80 Ta25 50000h (B50) MacAdam 3 SDCM CRI: >80 IP 54 | IK 08 | CE

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 14.94 W 1498 lm 100 lm/W 3000 K 85
Pollux LED Square 1500 830

Pollux LED Square 1500 830

Light output 1 (integrated)

LED

Mounting mode

Standing / Bollard

Shape and measurements

Length: 120 mm

Width: 120 mm

Height: 800 mm

Adjustability

Fixed

Design

Colour of housing: Anthracite / graphite

Electric

System power: 14.94 W

Appliance Class: I

Protection

IP: 54

IK: 08

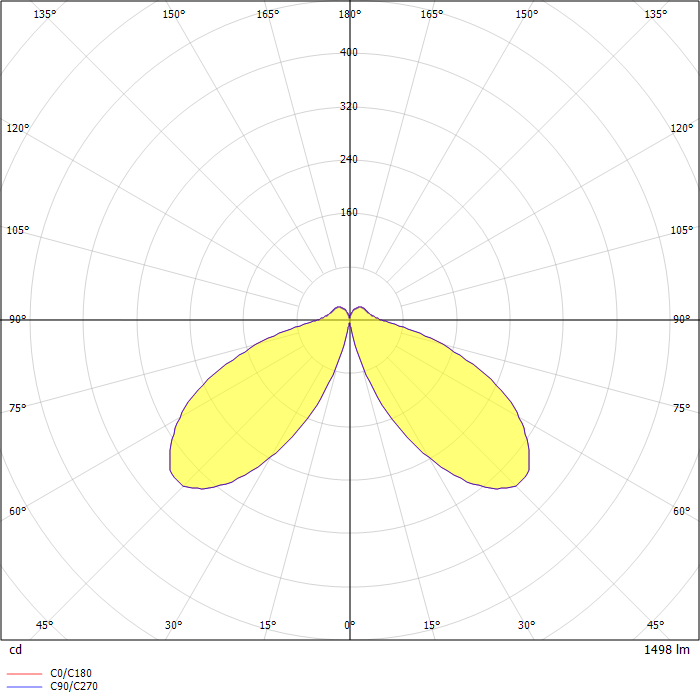

Photometric data

ZIP file

Download file
