Product data sheet

ECLPARIPMFC

ECLPARIPMFC_RED_NARROW OPTIC+F1020

Prolights

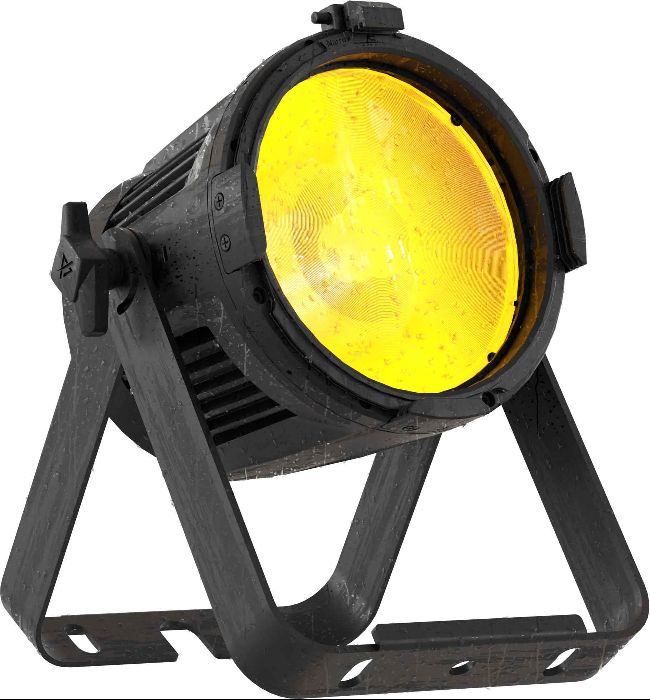

EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control. Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures. The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas silent operations are required. The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation. Features: 100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values Flex lens system: 15° on-board - 30° and 60° optional IP65 for exterior application, fan free

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 29.7 W 700 lm 24 lm/W 0 K -29
ECLPARIPMFC

ECLPARIPMFC

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Standing / Bollard

Shape and measurements

Length: 259 mm

Width: 65 mm

Height: 248 mm

Adjustability

Rotatable, Tiltable, Free

Design

Material impression: Aluminum

Electric

System power: 29.7 W

Controller: DMX

Colour adjustable

Appliance Class: I

Protection

IP: 65

IK: 08

Surface temperature: 50°C

Designation labels: CE

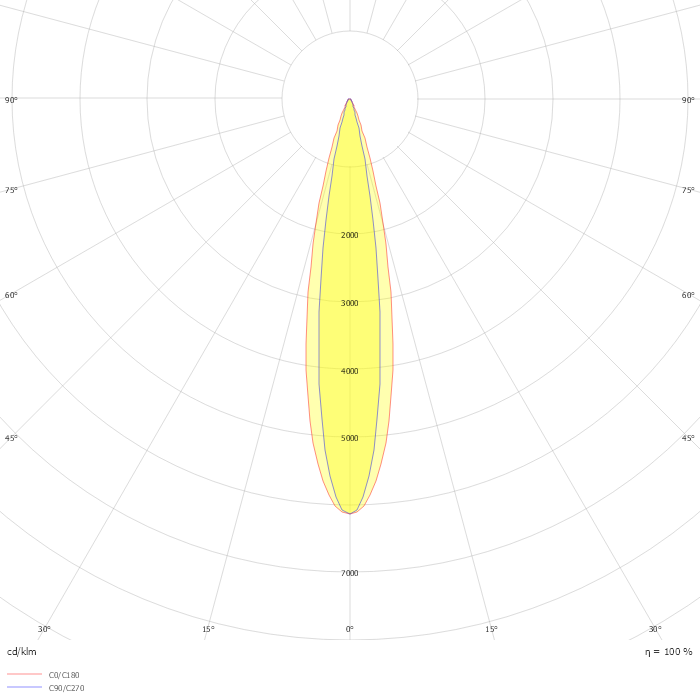

Photometric data

ZIP file

Datasheet

PDF file
