Product data sheet

Wall mounted luminaire CAMPO 4500 30° 3000K

12.01433.0VXXX

hess

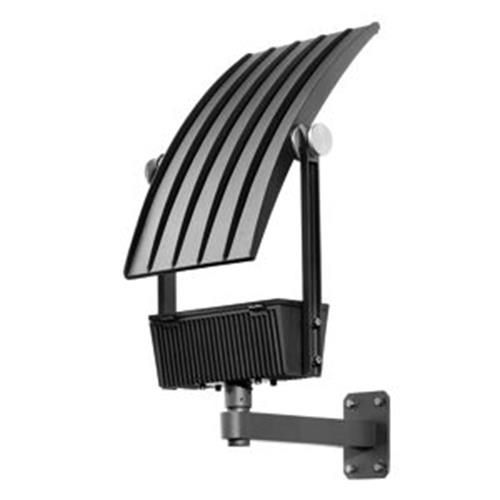

Product image 1: Wall mounted luminaire CAMPO 4500 30° 3000K
Product image 1: Wall mounted luminaire CAMPO 4500 30° 3000K

Product image 1: Wall mounted luminaire CAMPO 4500 30° 3000K



IP
65

Curved luminaire canopy made of cast aluminium with profiled reflection material made of aluminium. Inclination of luminaire canopy adjustable in increments: 0°, 15°, 30°, 45°, 60°. Support elements made of aluminium. Luminaire enclosure made of single-pane safety glass. Trapezoidal luminaire body made of cast aluminium. Wall bracket made of steel, galvanised.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 42 W 1787 lm 43 lm/W 3000 K 80
Wall mounted luminaire CAMPO 4500 30° 3000K

Wall mounted luminaire CAMPO 4500 30° 3000K

Light output 1 (integrated)

LED

Mounting mode

Wall mounted, Pole top mounted

Shape and measurements

Length: 768 mm

Width: 471 mm

Height: 909 mm

Adjustability

Tiltable

Electric

System power: 42 W

Protection

IP: 65

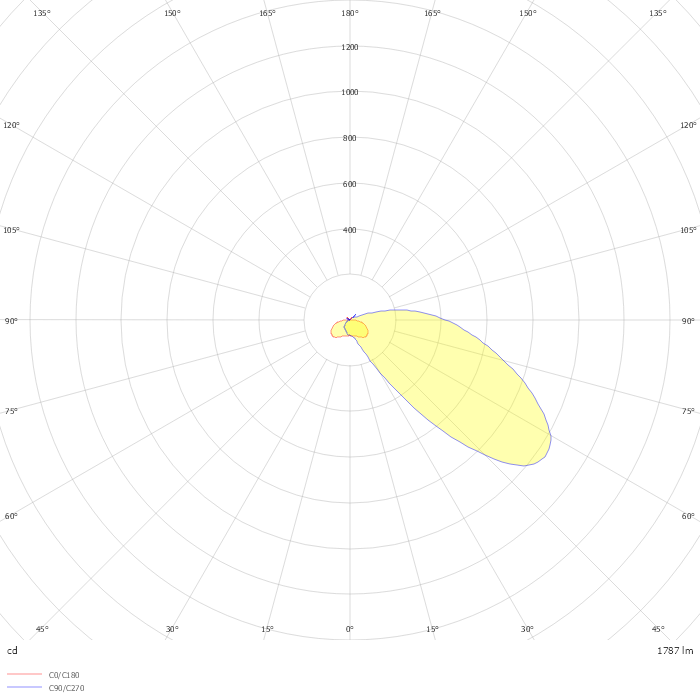

Photometric data

ZIP file

Download file
