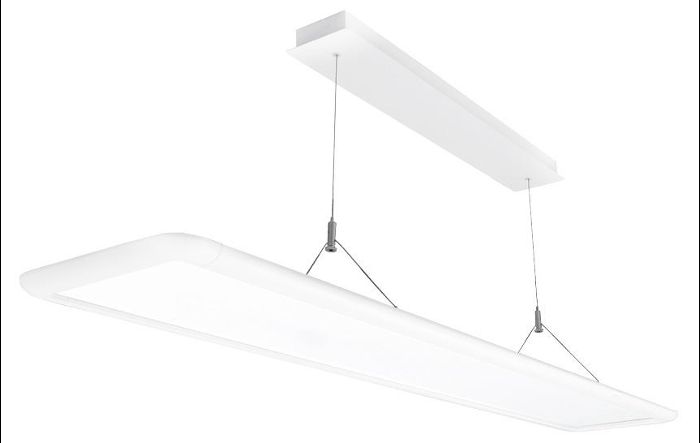

Energy efficient LED panel with a slimline profile that looks modern as it floats in the room. The fixture is produced in a matt white powder-coated aluminium. The prismatic diffuser provides a glare-free light, and it offers both indirect and direct lighting. Ideal for offices and meeting rooms. The ceiling bracket can be fitted externally using concealed or visible cabling. It can also easily be added to an ordinary 60x60 ceiling panel. Connection using quick release terminals for easy forwarding is possible. Low voltage power runs through the wires of the ceiling bracket ensuring it is a highly elegant solution without unsightly power cables in the way. Supplied as DALI or non-dimmable. Dip switches on the driver makes it possible to adjust down the lighting level if desired. Emergency lighting version also available. Light distribution: Direct/Indirect Light technic LED (not exchangeable) 36W 4000K Ra>80 SDCM 3 L80/B20 >50.000 hrs at Ta=25°C Control/Dimming On/Off Protection Class I IP20 Energy and approvals A++ CE Materials and finish Housing: Steel, Aluminium Colour: White Optics: PMMA Polymethylmethacrylat Mounting/Connection Suspended, Indoor 2x2m wire kit Screwless terminal block Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 36 W | 3600 lm | 100 lm/W | 4000 K | 80 |
Mounting mode
Pendant
Shape and measurements
Length: 1200 mm
Width: 210 mm
Height: 15 mm
Adjustability
Height adjustable
Electric
System power: 36 W
Appliance Class: I
Protection
IP: 20
Photometric data
ZIP file
