Product data sheet

StreetSense LED Street Light 12500 Lumens, Type III Distribution, Tempered Glass Lens

SL3C5HLGG

Dialight

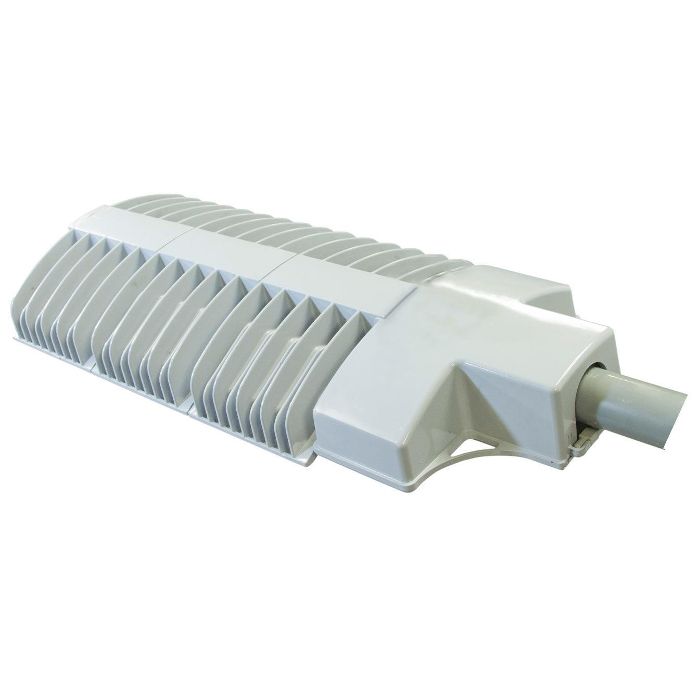

Product image 1: StreetSense LED Street Light 12500 Lumens, Type III Distribution, Tempered Glass Lens
Product image 1: StreetSense LED Street Light 12500 Lumens, Type III Distribution, Tempered Glass Lens

Product image 1: StreetSense LED Street Light 12500 Lumens, Type III Distribution, Tempered Glass Lens



IP
66

IK
07

StreetSense LED Street Light 12,500 Lumens 125 Watts 100-277V AC Cool White, 70CRI Tempered Glass Lens CSA C22.2 No. 250.0-08 CE UL 1598 (suitable for wet locations) IES Type III Distribution IP65 (a cable gland with a minimum ingress protection rating of IP54 is required to maintain certification) Scaled IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 125 W 12500 lm 100 lm/W 5181 K 86
StreetSense LED Street Light 12500 Lumens, Type III Distribution, Tempered Glass Lens

StreetSense LED Street Light 12500 Lumens, Type III Distribution, Tempered Glass Lens

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted, Pendant

Shape and measurements

Length: 372 mm

Width: 674 mm

Height: 122 mm

Weight: 7.26 kg

Adjustability

Rotatable, Tiltable

Electric

System power: 125 W

Appliance Class: I

Protection

IP: 66

IK: 07

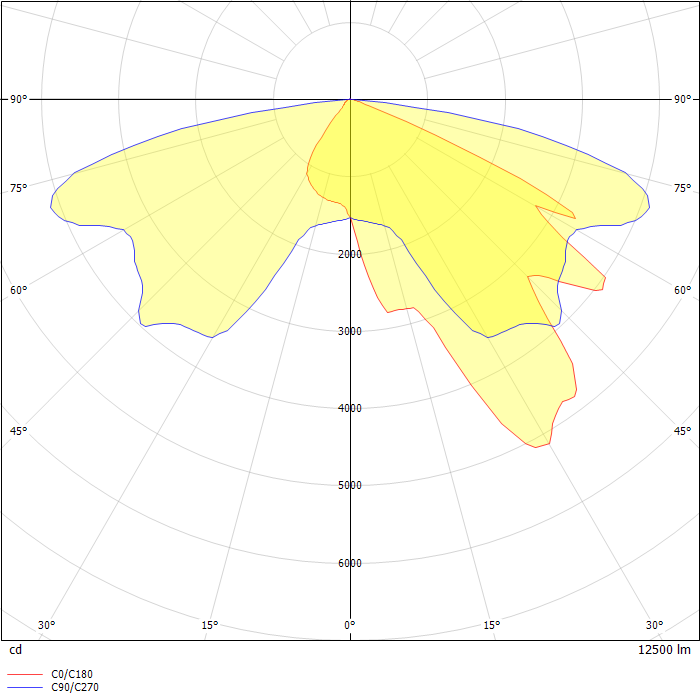

Photometric data

ZIP file

Download file
