Product data sheet

ALTIS HR 2KW R1 HQITS-S CL1 WI

96263388

Thorn Lighting

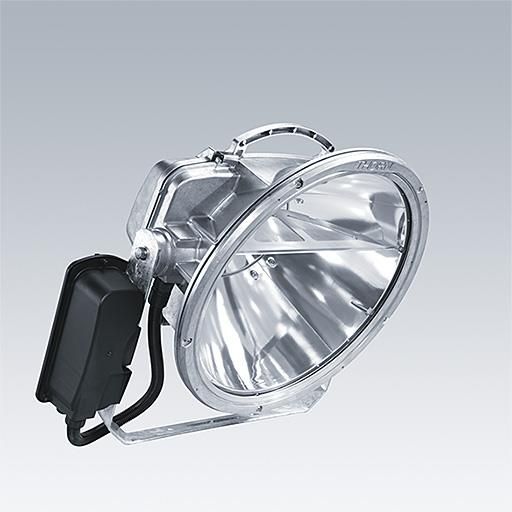

Product image 1: ALTIS HR 2KW R1 HQITS-S CL1 WI
Product image 1: ALTIS HR 2KW R1 HQITS-S CL1 WI

Product image 1: ALTIS HR 2KW R1 HQITS-S CL1 WI



IP
66

IK
08

A high performance discharge floodlight for 1 x 2000W HIT-DE OSS lamp. magnetic. Class I electrical, IP66. Body and frame: die-cast aluminium unpainted. Enclosure: 4mm thermally toughened glass. Stirrup fixed by single bolt through Ø22mm hole, or 105x17mm oblong hole, or by twin bolts through Ø15mm holes. Cable gland for 8 to 12mm cable. Aiming via integrated sights. Ideal for sports field and stadium lighting. Complete with hot restrike ignitor box. Gear tray to be ordered separately. Lamp to be ordered separately. Total power: 2075 W Dimensions: 566 x 626 x 285 mm Weight: 16.7 kg Scx: 0.21 m²

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x General service incandescent lamp 2000 W 200000 lm 78 lm/W 3000 K 99
ALTIS HR 2KW R1 HQITS-S CL1 WI

ALTIS HR 2KW R1 HQITS-S CL1 WI

Light output 1

1 x General service incandescent lamp

Mounting mode

Ceiling mounted

Shape and measurements

Length: 566 mm

Width: 626 mm

Height: 285 mm

Weight: 16.7 kg

Design

Material impression: Aluminum

Electric

System power: 2075 W

Voltage: 380-415 V AC

Appliance Class: I

Protection

IP: 66

IK: 08

Designation labels: CE

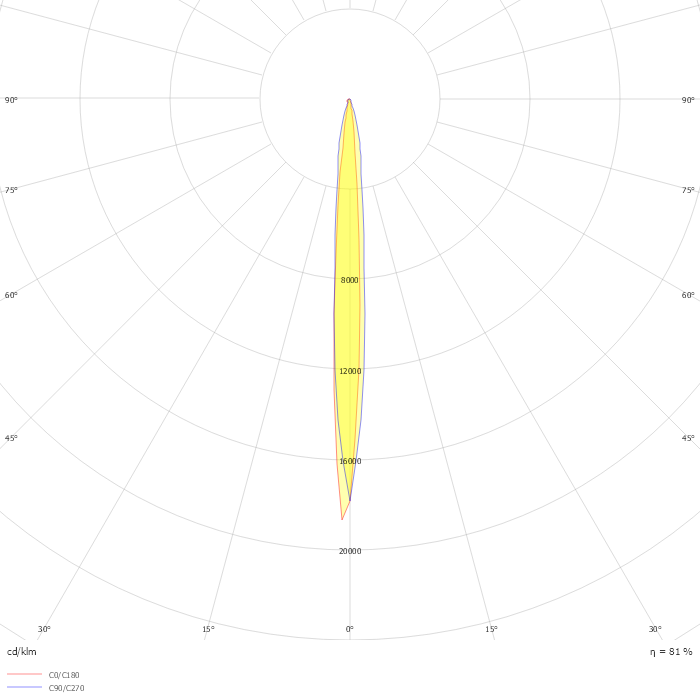

Photometric data

ZIP file

Download file
