Product data sheet
SL19 - SPY 39 93040 DIM5
27025 9335
Delta Light

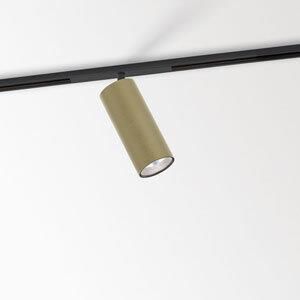

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named SL19 - SPY 39 93040 DIM5, available in the colour(s): black, flemish bronze, flemish gold, gold coloured, white. This luminaire can be used with the following 48V lighting system(s): SHIFTLINE 19 - PROFILE. This luminaire is equipped with LED array 8,6W / CRI>90 (R9: 52) / 3000K / 1089lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: DALI. Light distributor: reflector 40°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
Mounting mode
Ceiling mounted, Contact rail
Shape and measurements
Length: 20 mm
Width: 160 mm
Height: 1 mm
Electric
System power: 20 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

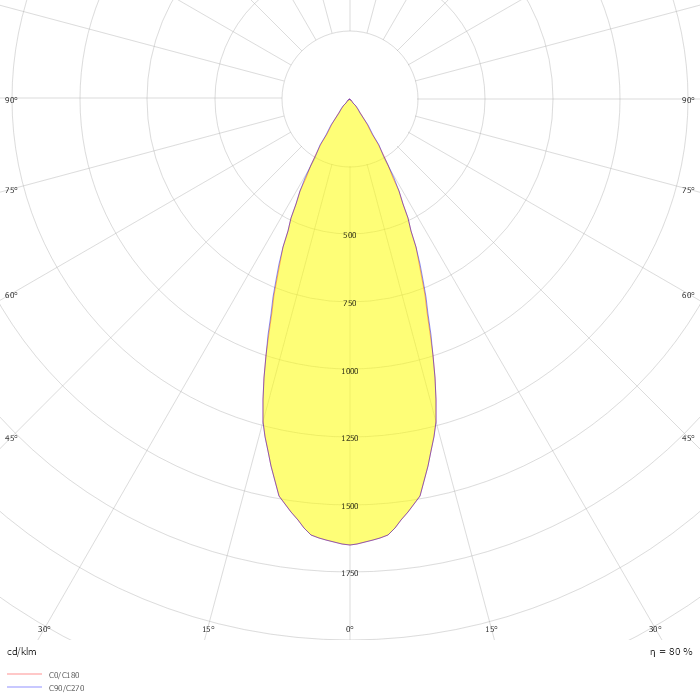

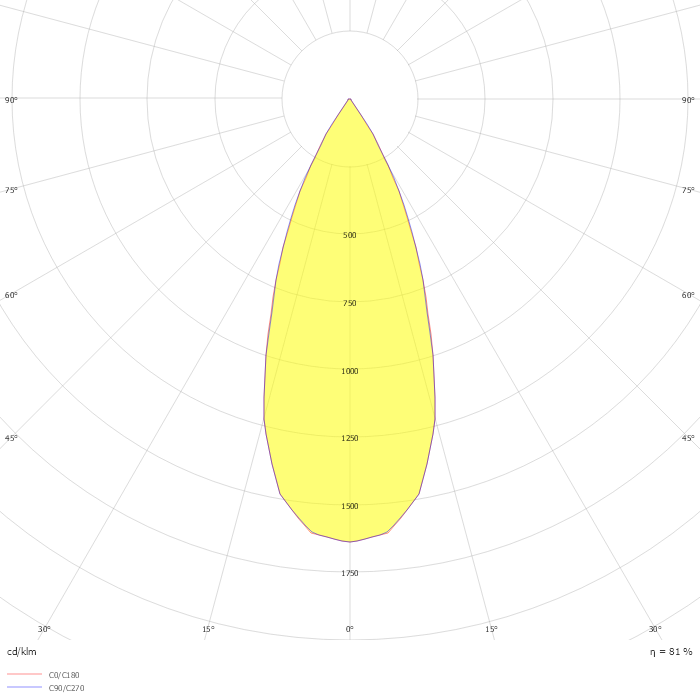

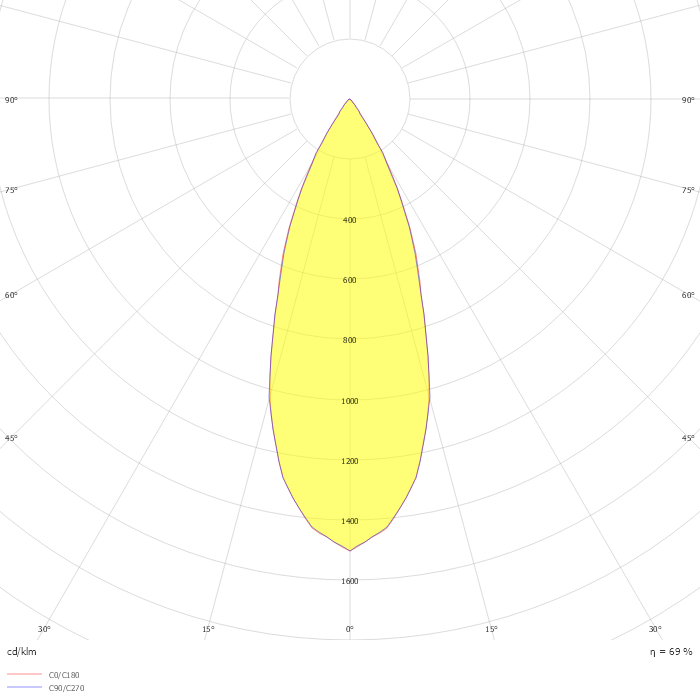

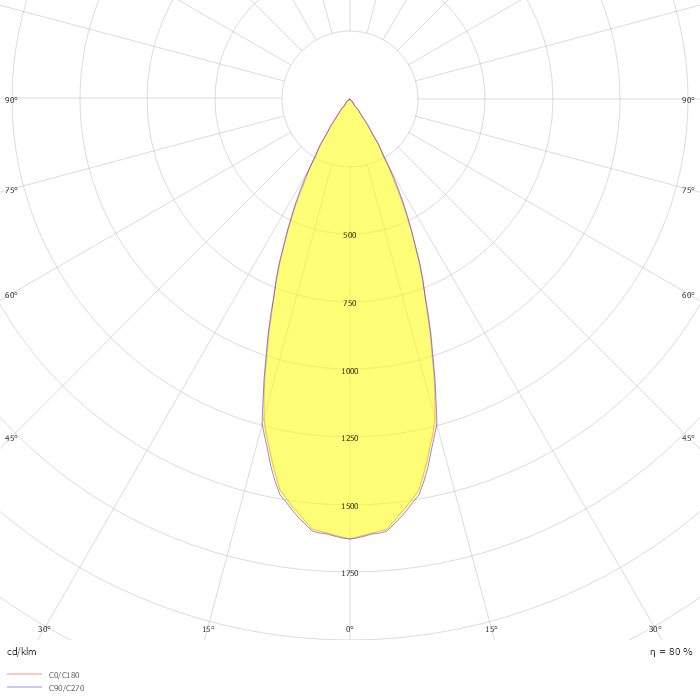

Photometric data
ZIP file
