Product data sheet

B95 - "Brick" Wall / Ceiling High Abuse, 9"x5"

B95-HE-BLK-LD4-20W-40-CL-120-EDC1

Cooper Lighting

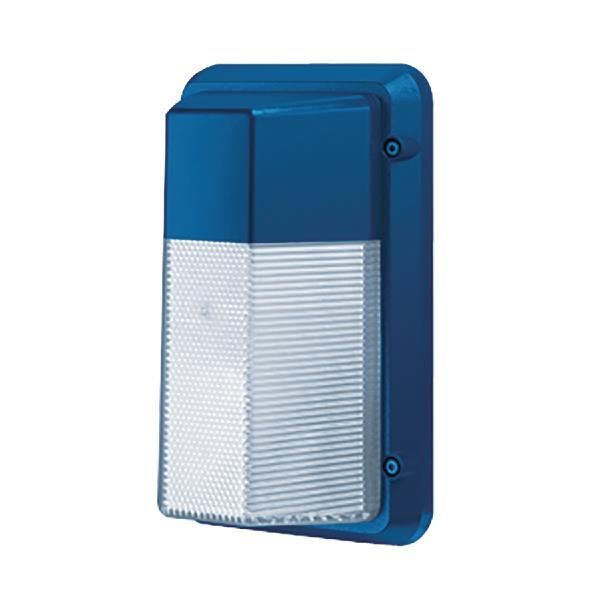

Product image 1: B95 - "Brick" Wall / Ceiling High Abuse, 9"x5"
Product image 1: B95 - "Brick" Wall / Ceiling High Abuse, 9"x5"

Product image 1: B95 - "Brick" Wall / Ceiling High Abuse, 9"x5"



IP
47

8, 12, 16, 20 watt / lumen packages, Outdoor wet location listed, IP65 ingress protection, Full polycarbonate lens for ultimate protection, Lifetime warranty against physical abuse, Clear or opal lens, open or eyelid, Shallow casting for surface conduit entry, Stainless steel tamper proof hardware. Philips head available, Custom colors available

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 19.1 W 1180 lm 62 lm/W 4000 K 80
B95 - "Brick" Wall / Ceiling High Abuse, 9"x5"

B95 - "Brick" Wall / Ceiling High Abuse, 9"x5"

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 203 mm

Width: 89 mm

Height: 108 mm

Adjustability

Fixed

Electric

System power: 19.1 W

Protection

IP: 47

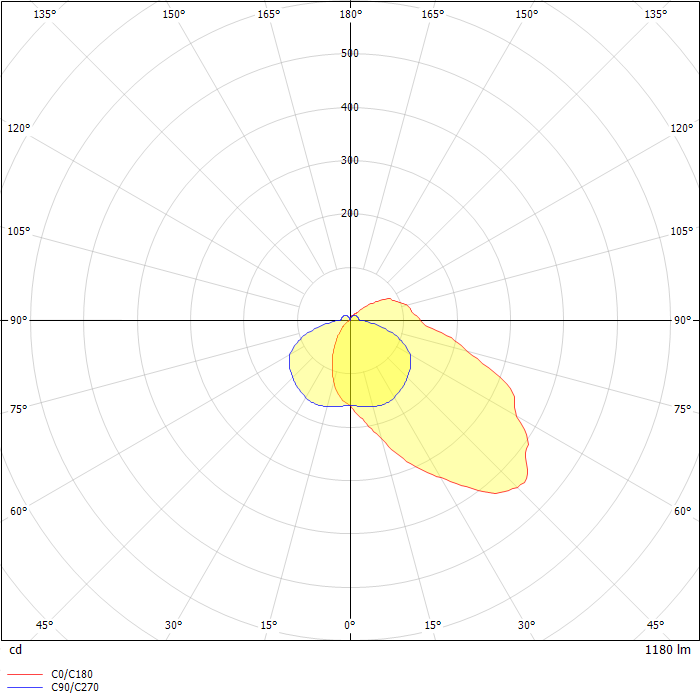

Photometric data

ZIP file

Download file
