Product data sheet

SHADOW LIGHTS STAGE 2 Insert KEY 4000K

26.30600.0V001 + 26.41000.0V00X

hess

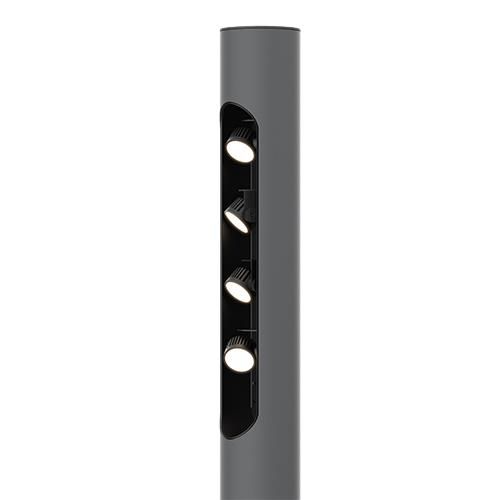

Product image 1: SHADOW LIGHTS STAGE 2 Insert KEY 4000K
Product image 1: SHADOW LIGHTS STAGE 2 Insert KEY 4000K

Product image 1: SHADOW LIGHTS STAGE 2 Insert KEY 4000K



IP
65

INSERT SHADOW LIGHTS STAGE 2 INSERT SHADOW LIGHTS STAGE 2 - KEY For use in the intermediate element empty module Stage 2 Housing made of aluminium, painted matt black RAL 9005 The insert is fitted with 4 spots, painted black. The spots are fixed and not adjustable. Spot 1: 19°, inclination vertical -45°, angle horizontal +18° Spot 2: 19°, inclination vertical -45°, angle horizontal -18° Spot 3: 19°, inclination vertical -45°, angle horizontal 0° Spot 4: 19°, inclination vertical -35°, angle horizontal +36° Rated power 12W-24W With electronical ballast (220-240V 50/60Hz) Current rating 350 - 700mA Ingress protection IP65 (built-in) pre-wired

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 6 W 679 lm 113 lm/W 4000 K 80
SHADOW LIGHTS STAGE 2 Insert KEY 4000K

SHADOW LIGHTS STAGE 2 Insert KEY 4000K

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 6 W 679 lm 113 lm/W 4000 K 80
SHADOW LIGHTS STAGE 2 Insert KEY 4000K

SHADOW LIGHTS STAGE 2 Insert KEY 4000K

Light output 2 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 6 W 679 lm 113 lm/W 4000 K 80
SHADOW LIGHTS STAGE 2 Insert KEY 4000K

SHADOW LIGHTS STAGE 2 Insert KEY 4000K

Light output 3 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 6 W 679 lm 113 lm/W 4000 K 80
SHADOW LIGHTS STAGE 2 Insert KEY 4000K

SHADOW LIGHTS STAGE 2 Insert KEY 4000K

Light output 4 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 234 mm

Width: 277 mm

Height: 1014 mm

Adjustability

Fixed, Rotatable, Height adjustable

Design

Colour of housing: Black

Electric

System power: 24 W

Protection

IP: 65

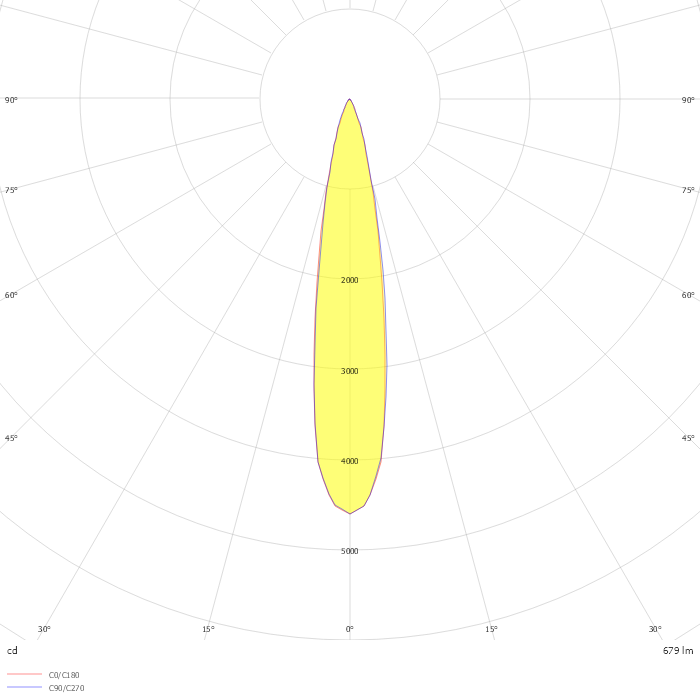

Photometric data

ZIP file

Download file
