Product data sheet

Linear Ceiling M - housing silver - NW

L9M0C08S

Proled (MBN GmbH)

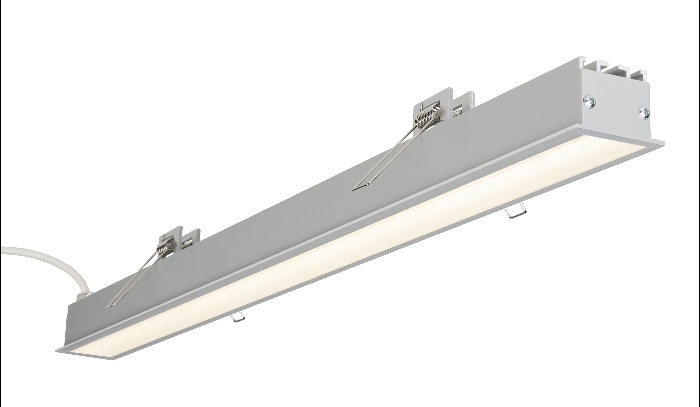

Product image 1: Linear Ceiling M - housing silver - NW
Product image 1: Linear Ceiling M - housing silver - NW

Product image 1: Linear Ceiling M - housing silver - NW



IP
20

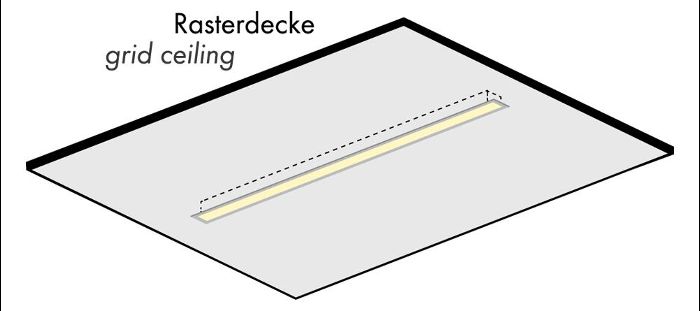

The LINEAR CEILING M luminaire is designed for suspended ceilings (especially for grid ceilings). - homogenous light line with high luminous transmittance due to plastic cover frost (semitransparent) - 3 colours: aluminium silver, white and black - 4 colour temperatures: white (6000 K), neutral white (4000 K), warm white (3000 K) and super warm white (2700 K) - easy installation with spring mounting clips

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 8 W 730 lm 91 lm/W 4000 K 90
Linear Ceiling M - housing silver - NW

Linear Ceiling M - housing silver - NW

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

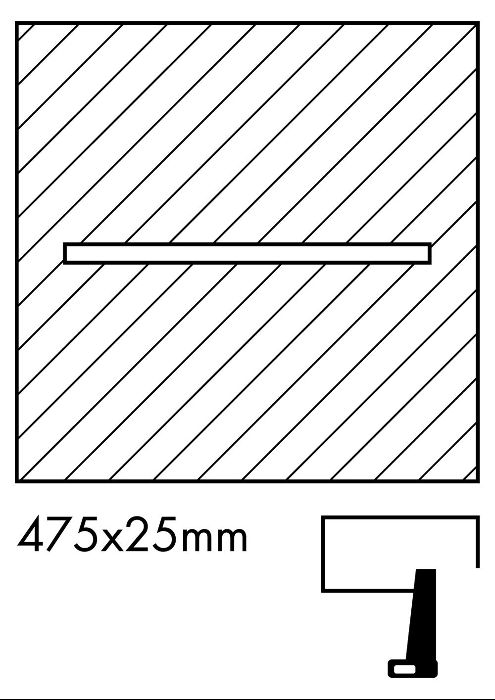

Shape and measurements

Length: 480 mm

Width: 35 mm

Height: 49 mm

Weight: 0.4 kg

Adjustability

Fixed

Electric

System power: 8 W

Appliance Class: III

Protection

IP: 20

Other operating numbers

Ambient temperature range: -10...45°C

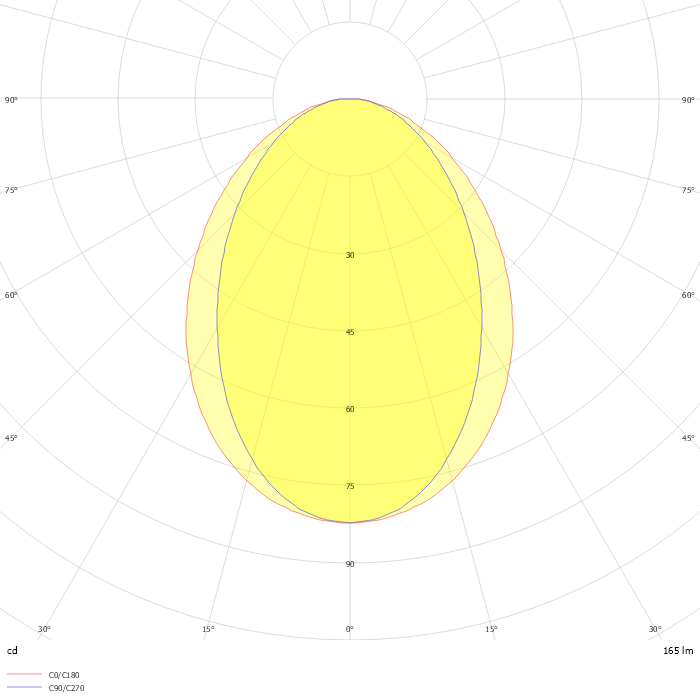

Photometric data

ZIP file

Download file
