Product data sheet

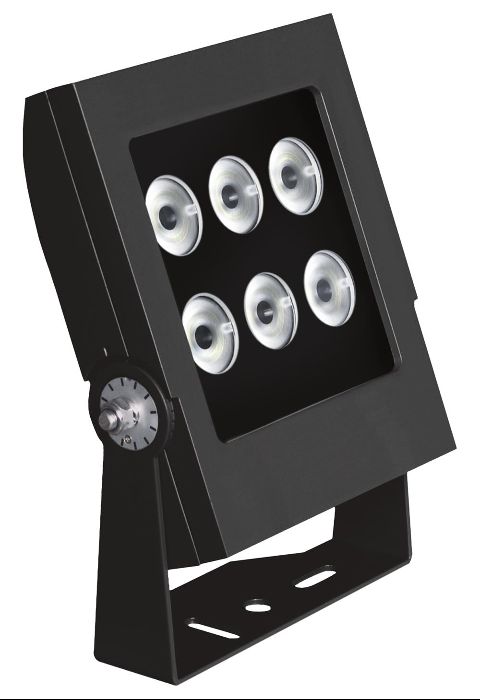

Wallwasher 6 RGBW
L1307B
Proled (MBN GmbH)
The PROLED WALLWASHER 6 RGBW is ideal for the illumination of large surfaces, e.g. buildings or walls in outdoor areas. They are also suitable for ambient lighting in indoor applications. Because of the RGBW high power LEDs (4 Watt) the RGBW WALLWASHER 6 offers homogeneous colormixing and clean natural white. - dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
- Light output 1 (integrated)
- Light output 2 (integrated)
- Light output 3 (integrated)
- Light output 4 (integrated)
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8.7 W | 500 lm | 57 lm/W | 7247 K | -18 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 7 W | 250 lm | 36 lm/W | 0 K | -29 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8.7 W | 120 lm | 14 lm/W | 0 K | -50 |
Mounting mode
Standing / Bollard, Floor mounted

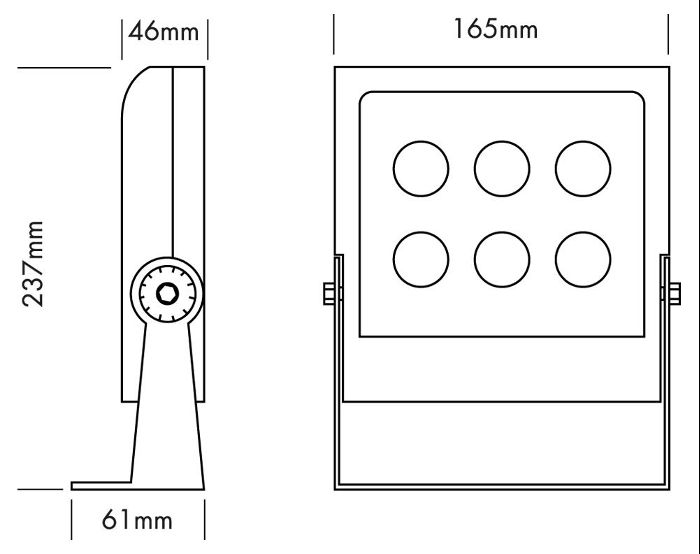

Shape and measurements
Length: 165 mm
Width: 61 mm
Height: 237 mm
Weight: 2.3 kg
Adjustability
Tiltable
Electric
System power: 33.1 W
Controller: Dimmable 1..10V, DMX, DALI
Colour adjustable
Appliance Class: III
Protection
IP: 65
IK: 08
Other operating numbers
Ambient temperature range: -10...45°C

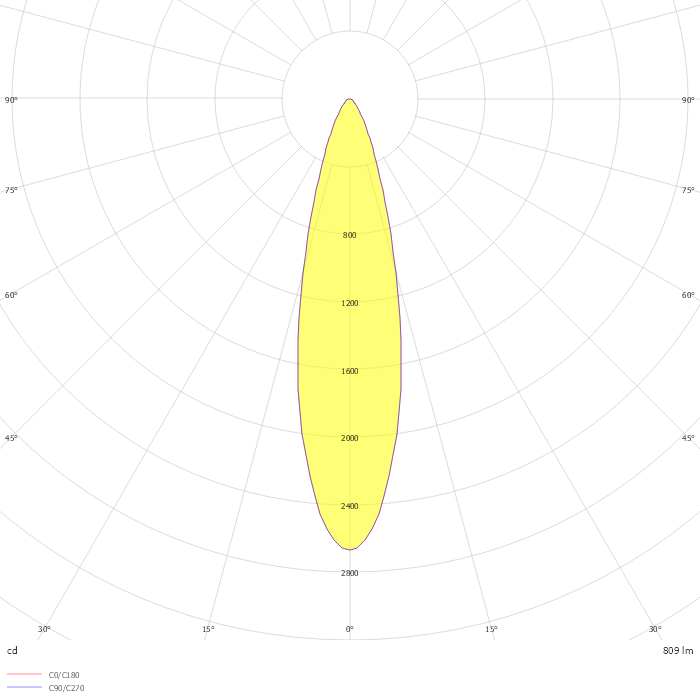

Photometric data
ZIP file
