Product data sheet

Kaptur 1200 PMMA 840 OR CLO

39321-581

Fagerhult

Installation Surface-mounted, wall, cord and cable with ceiling bracket. Bracket, see accessories. Connection Two cable-entry equipped with insertion holes Ø 22 mm – one in each end cap. Snap-in terminal block 5 x 2.5 mm²; option of through-wiring. Design Luminaire body of PS plastic. Mounting plate in white enamelled steel sheet. Louvre Opal diffuser made of plastic, acrylic (PMMA, IK03) or polycarbonate (PC, IK08) with stainless steel shade catch. The shade has internal, lengthways grooves.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 38 W 5522 lm 145 lm/W 4000 K 80
Kaptur 1200 PMMA 840 OR CLO

Kaptur 1200 PMMA 840 OR CLO

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1200 mm

Width: 126 mm

Height: 106 mm

Adjustability

Fixed

Electric

System power: 38 W

Protection

IP: 67

IK: 08

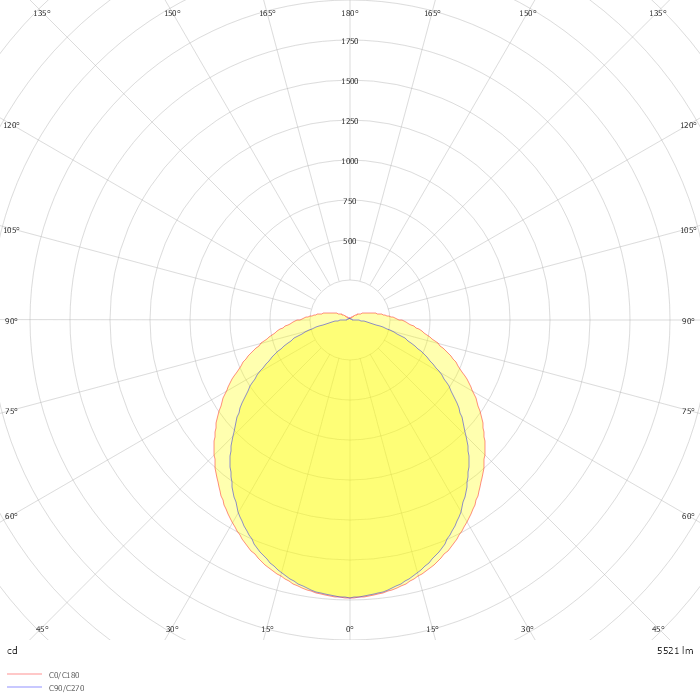

Photometric data

ZIP file
