Product data sheet

Vancouver 3 bollards

VA-10001-W40

LIGMAN

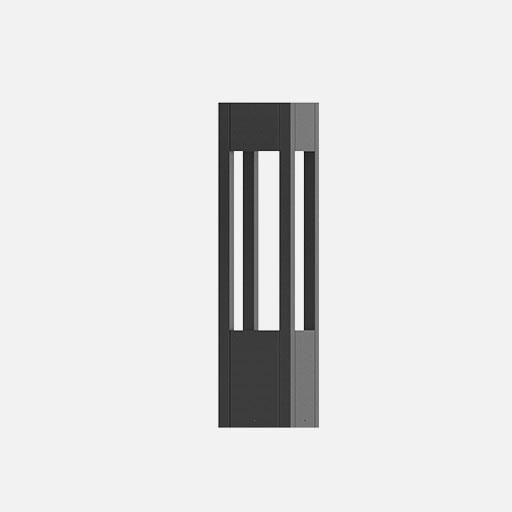

Product image 1: Vancouver 3 bollards
Product image 1: Vancouver 3 bollards

Product image 1: Vancouver 3 bollards



IP
65

IK
08

- Lamp COB - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour 3000K , 4000K - Die-cast aluminium housing and extruded aluminium column pre-treated before powder coating ensuring high corrosion resistance - Single cable entry - One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable - Stainless steel fasteners in grade 316 - Durable silicone rubber gasket - High-efficiency optical reflector - Clear toughened glass - Integral control gear

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 20.7 W 1270 lm 61 lm/W 4032 K 80
Vancouver 3 bollards

Vancouver 3 bollards

Light output 1 (integrated)

LED

Mounting mode

Standing / Bollard

Shape and measurements

Length: 240 mm

Width: 240 mm

Height: 1000 mm

Weight: 11 kg

Adjustability

Fixed

Design

Colour of housing: Black, White, Silver gray

Glare protection

Glare protection: UGR < 19

Electric

System power: 20.7 W

Voltage: 230 V AC

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Protection

IP: 65

IK: 08

Surface temperature: 40°C

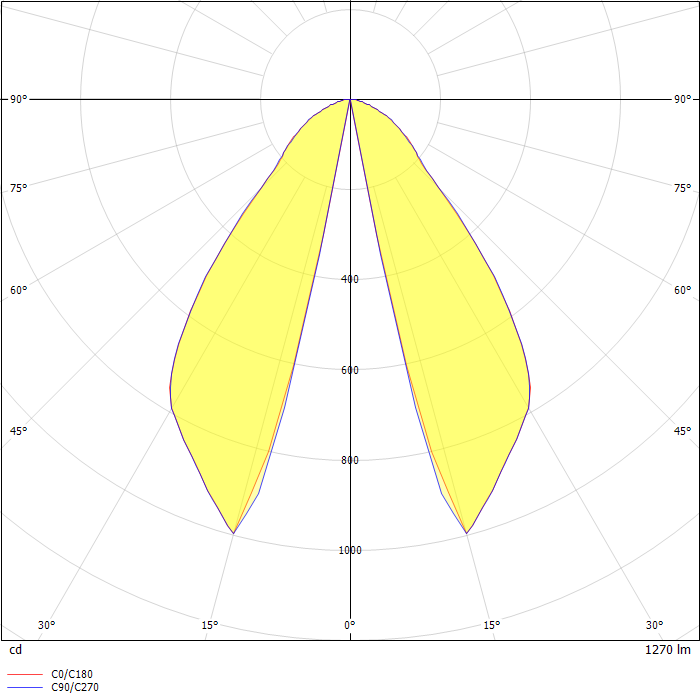

Photometric data

ZIP file

Download file
