Product data sheet

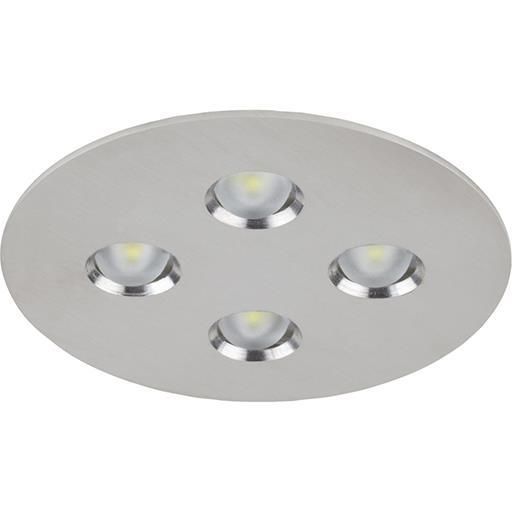

3504.1 LED CG-S stainless steel

40071352904

Eaton Emergency Lighting

• Safety luminaire with LED technology for recessed mounting with round bezel • Typical ceiling cut-out diameter of 68 mm and low profile of only 30 mm • Compact housing for LED supply (required height for entering the ceiling only 100 mm) including through-wiring clamp and strain relief • Wide light point spacing due to wide light distribution optics and high power LEDs •Up to 18 m from luminaire to luminaire for escape route illumination and wide area illumination (3x03.1) •Up to 20 m from luminaire to luminaire for escape route illumination and wide area illumination (3x04.1)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 4.4 W 620 lm 141 lm/W 6000 K 65
3504.1 LED CG-S stainless steel

3504.1 LED CG-S stainless steel

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 4.4 W 620 lm 141 lm/W 6000 K 65
3504.1 LED CG-S stainless steel

3504.1 LED CG-S stainless steel

Light output 2 (integrated, emergency)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 2 mm

Diameter: 80 mm

Adjustability

Fixed

Electric

System power: 8.8 W

Appliance Class: II

Information regarding emergency functions

Supplementary emergency lighting

Emergency power supply: Central battery feed-in

Emergency sign: N/A

Protection

IP: 20

IK: 03

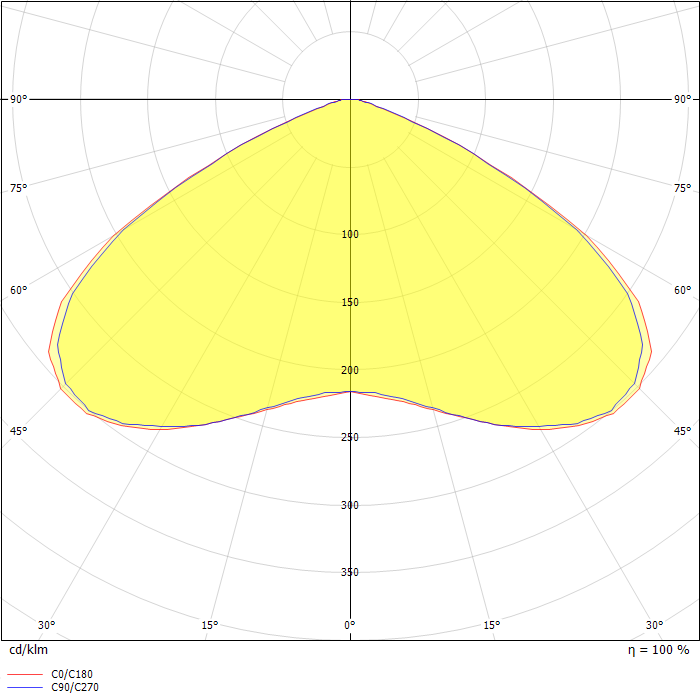

Photometric data

ZIP file
