Product data sheet

LED Downlight glare reduced, 35W, round, DN228, CRI90, Switch 3000|3500|4000K, dimmable

114194

ISOLED

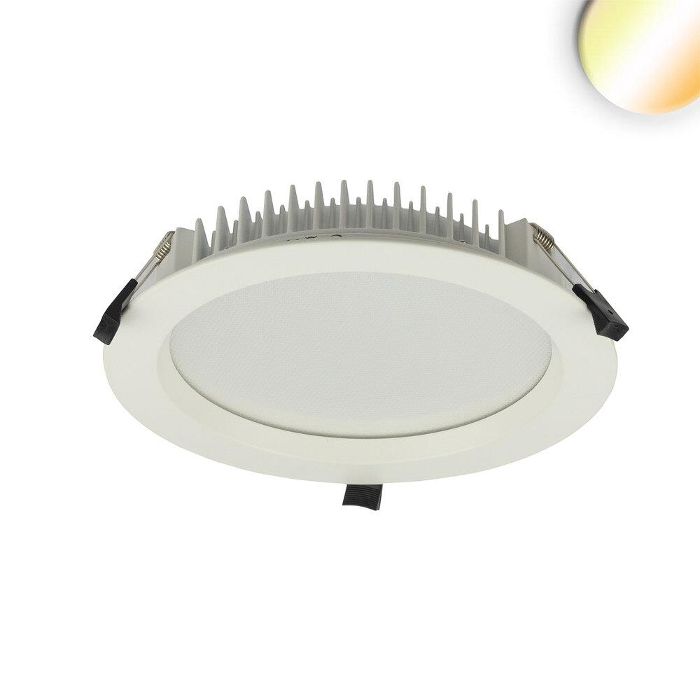

Product image 1: LED Downlight glare reduced, 35W, round, DN228, CRI90, Switch 3000|3500|4000K, dimmable
Product image 1: LED Downlight glare reduced, 35W, round, DN228, CRI90, Switch 3000|3500|4000K, dimmable

Product image 1: LED Downlight glare reduced, 35W, round, DN228, CRI90, Switch 3000|3500|4000K, dimmable



IP
42

LED downlight glare-reduced, 35W, round, DN228, CRI90, Switch 3000|3500|4000K, dimmable | Dimensioned wattage: 35 W | Effective wattage: 34 W | Energy efficiency class: F (EU 2019/2015) | Nominal Voltage: 220 - 240 V AC | Material: die-cast aluminum | Surface color: white | Protection class: IP42 | suitable for indoor use only | permissible ambient Temperatures: -20° - 40° C | Diameter: 228 mm | Installation depth: 49 mm | Hole cut-out: 200 mm circle | Beam angle: 90° fixed | Color temperature: 3000K - 4000K | Color rendering index: 90 (Ra 1-8) | Luminous flux: 3050 lm | Phase on/off dimmable | Incl. external replaceable transformer | Useful life: 68000 h (L80|B50) | Guarantee: 2 years | | Dimming specification: Dimming range: 20-100% of light output with TRIAC dimmer | Recommendation: Use trailing edge dimming actuator | Flicker component depends on the dimming actuator used and the type of dimming | Flickerfree in undimmed state | FABRICATION: ISOLED 114194

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 34 W 3050 lm 90 lm/W 3000 K 90
LED Downlight glare reduced, 35W, round, DN228, CRI90, Switch 3000|3500|4000K, dimmable

LED Downlight glare reduced, 35W, round, DN228, CRI90, Switch 3000|3500|4000K, dimmable

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 45 mm

Diameter: 228 mm

Adjustability

Fixed

Design

Material impression: Aluminum

Colour of housing: White

Glare protection

Glare protection: BAP (L < 1000 cd/m²)

Electric

System power: 34 W

Ballast: ECG

Protection

IP: 42

Designation labels: CE

Other operating numbers

Ambient temperature range: -20...40°C

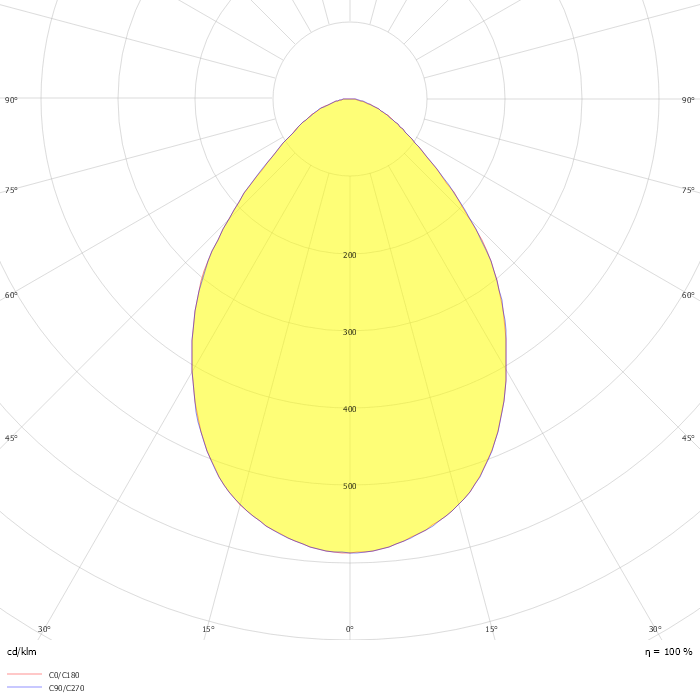

Photometric data

ZIP file

Download file
