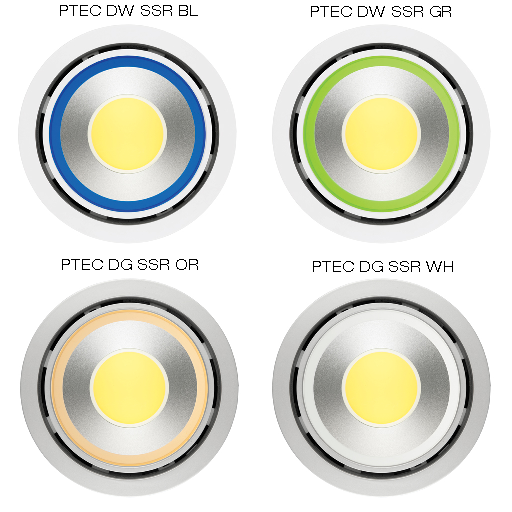

Protec LED - Ø174mm, IP20 Recessed downlighter with ABS housing and bezel, zinc plated spring steel fixing clips, anodised aluminium reflectors. LE3 - Lithium Emergency LS3 - Lithium Selftest LA3 - Lithium Autotest Emergency Lumen Values: No Coloured Ring: Opti-Spec: 367, Opti-Sat: 357 Drop Glass Ring: Opti-Spec: 344, Opti-Sat: 335 IP44 Cover: Opti-Spec: 343, Opti-Sat: 333 Microprism Diffuser: Opti-Spec: 274, Opti-Sat: 263 Opal Diffuser: Opti-Spec: 262, Opti-Sat: 243 S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)* Replace * with WH for white ring or GY for Grey Replace ** with WHI - White halo GRE - Green halo ORA - Mango halo BLE - Blue halo
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
4 W | 388 lm | 97 lm/W | 4000 K | 80 |
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
16.5 W | 1859 lm | 113 lm/W | 4000 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 122 mm
Diameter: 175 mm
Adjustability
Fixed
Electric
System power: 20.5 W
Ballast: ECG
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
IP: 20
Designation labels: CE

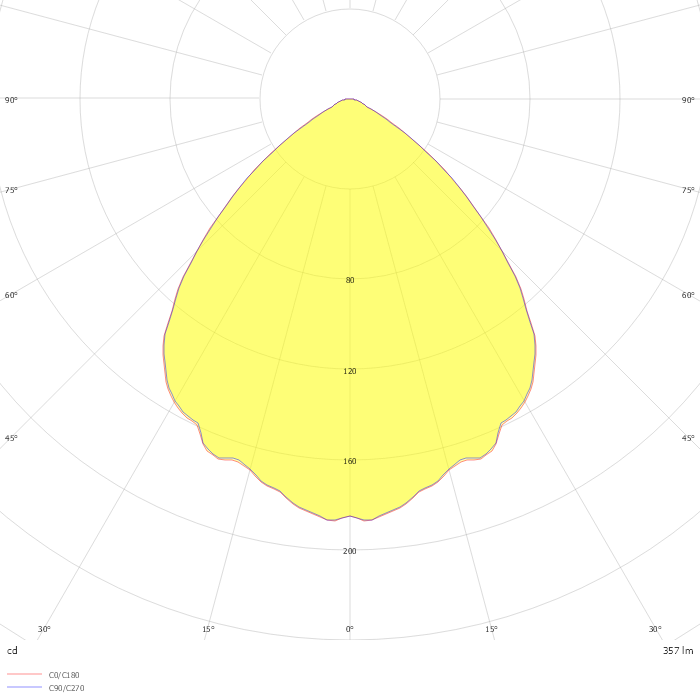

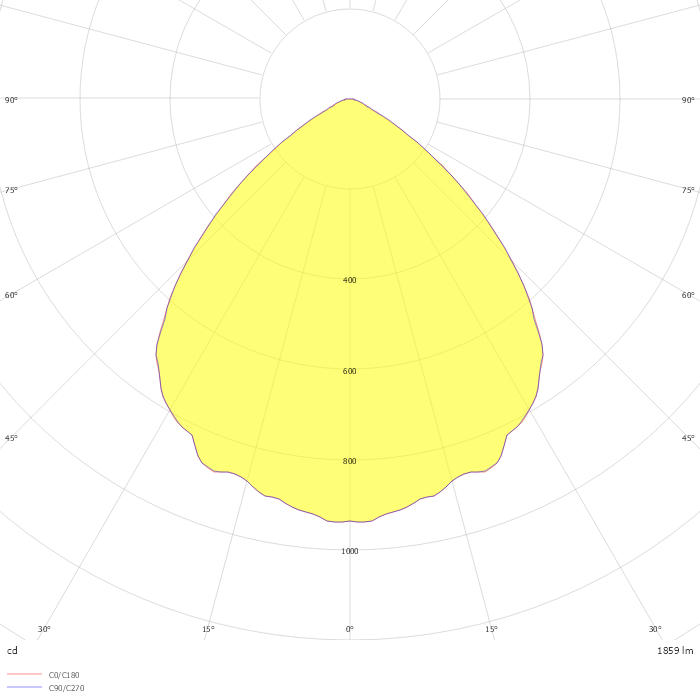

Photometric data
ZIP file
