Product data sheet

TLED3725A 7W 24° 3000K 磁吸吊线灯

70115782

NVC

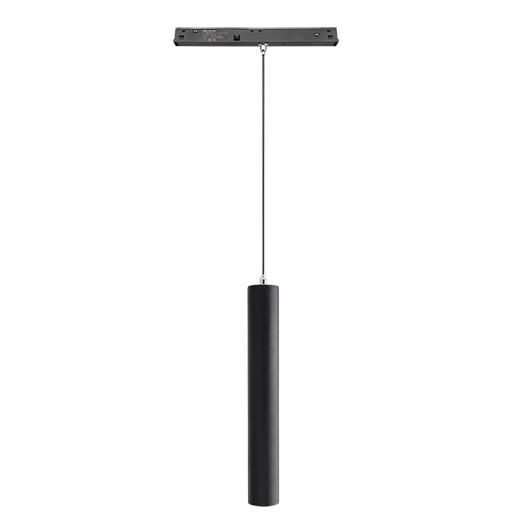

Product image 1: TLED3725A 7W 24° 3000K 磁吸吊线灯
Product image 1: TLED3725A 7W 24° 3000K 磁吸吊线灯

Product image 1: TLED3725A 7W 24° 3000K 磁吸吊线灯



IP
20

IK
05

产品描述： 光源类型：OSRAM LED COB 1202 驱动电源：外置恒流驱动 表面处理：烤粉 灯体颜色：84喷沙黑 灯体材质：铝 适用导轨：T4-10 低压48V磁吸导轨 系列可选 ： TLED3721导轨灯/TLED3722线条灯/TLED3723格栅灯/TLED3724洗墙灯/TLED3725吊线灯 导轨：R21单轨/R22单轨/R23单轨 导轨安装方式：明装/吊装/嵌装 色温：3000K /4000K 光束角：24°/110° 显指：Ra90 功率：7W/9W/12W/15W 更新说明： 暂无更新，敬请期待。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 8.7 W 500 lm 57 lm/W 3000 K 90
TLED3725A 7W 24° 3000K 磁吸吊线灯

TLED3725A 7W 24° 3000K 磁吸吊线灯

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Ceiling recessed, Pendant, Contact rail

Shape and measurements

Height: 250 mm

Diameter: 36 mm

Weight: 0.23 kg

Adjustability

Cardanic

Electric

System power: 8.7 W

Appliance Class: III

Protection

IP: 20

IK: 05

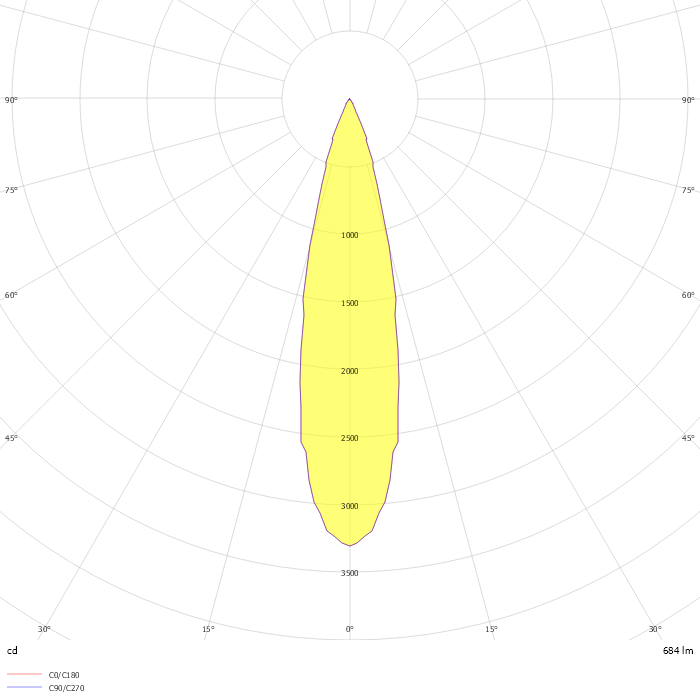

Photometric data

ZIP file

Download file
