Product data sheet

CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

84039103_060_84027040/S

Exenia

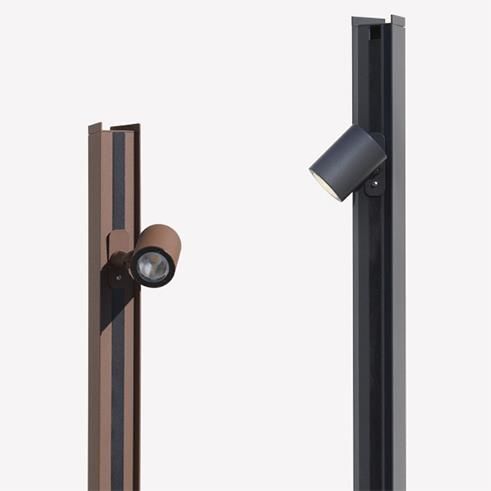

Product image 1: CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°
Product image 1: CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

Product image 1: CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°



IP
65

IK
08

Pole mount system to use with WOLF LED projector for surface and wall mount installations. The CACTUS pole is available in three standard lengths of 600mm, 1000mm and 2000mm. Up to three WOLF LED projectors can be fitted on the CACTUS pole for 1000mm and 2000mm. Up to two LED projectors can be fitted on the 600mm CACTUS. Natural powder coat finish options include carbon grey, mud brown, matt sand, matt white textured and rust effect. A range of external drivers and accessories is available for this range to enable ON/OFF and DALI dimming.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 4.2 W 106 lm 25 lm/W 3000 K 85
CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.5 W 620 lm 83 lm/W 3000 K 85
CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

Light output 2 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.5 W 620 lm 83 lm/W 3000 K 85
CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

CACTUS STRIP 60CM + 2 SPOT WOLF 24/48V 7W Ottica/S 15°

Light output 3 (integrated)

LED

Mounting mode

Standing / Bollard, Floor mounted

Shape and measurements

Length: 2 mm

Width: 15 mm

Height: 598 mm

Adjustability

Free

Electric

System power: 19.2 W

Appliance Class: III

Protection

IP: 65

IK: 08

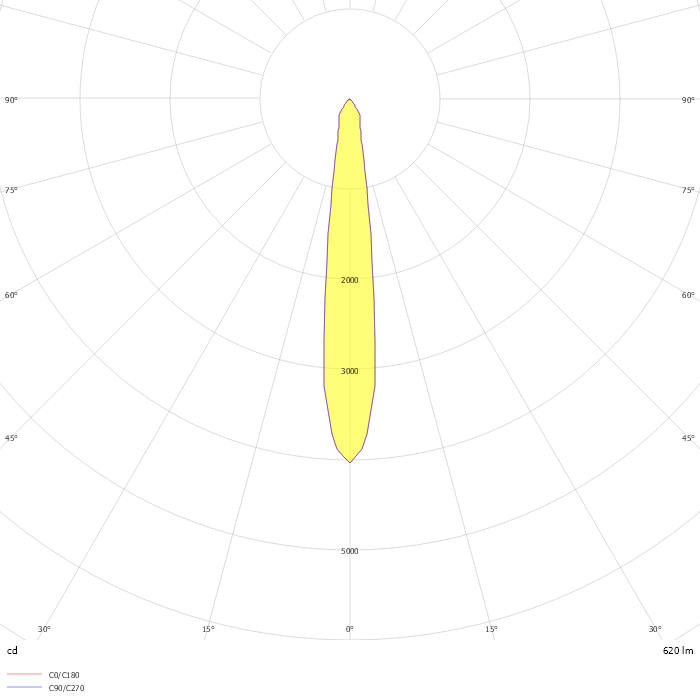

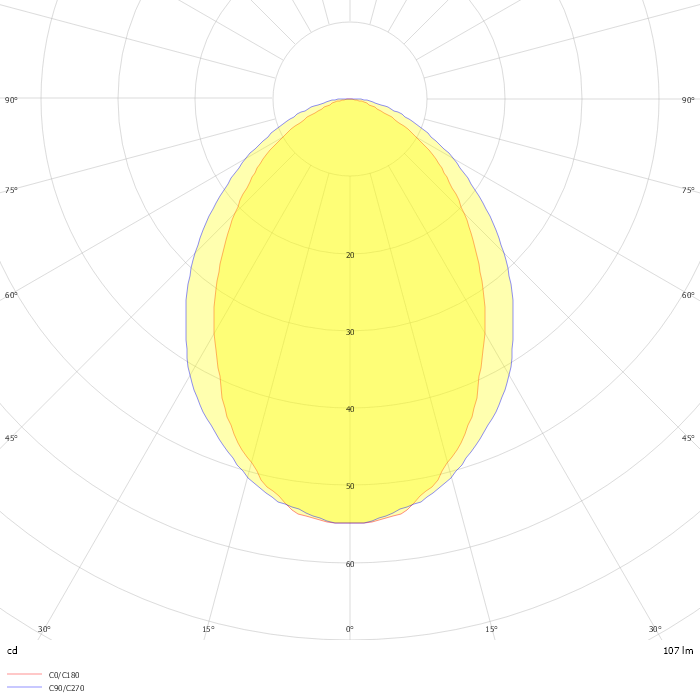

Photometric data

ZIP file
