Product data sheet

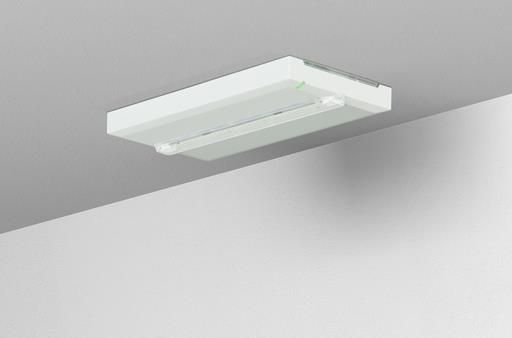

FlexiTech SL lens optic 400lm CG-S IP65

FT2SE400CGSIP

Eaton Emergency Lighting

• Safety luminaire, light distribution optimized for escape route applications • Unobstrusive design and slim housing (31 mm) • High output of 400 lm and high spacing in a compact housing • Possibility to modify the light distribution by changing the optical lens (option) • Same aesthetic in IP43 and IP65 versions • Large working space, cable entries in flexible material and spirit level for easy and fast installation • Transparent base plate with honeycomb footprint for easy replacement of existing products (IP43 use only) • Complete range of accessories (recessed kit for ceiling, recessed box for plaster and brick wall, wire guard)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 5.4 W 400 lm 74 lm/W 6500 K 70
FlexiTech SL lens optic 400lm CG-S IP65

FlexiTech SL lens optic 400lm CG-S IP65

Light output 1 (integrated, emergency)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 230 mm

Width: 120 mm

Height: 20 mm

Adjustability

Fixed

Electric

System power: 5.4 W

Appliance Class: II

Information regarding emergency functions

Emergency lighting only

Emergency power supply: Central battery feed-in

Emergency sign: N/A

Protection

IP: 65

IK: 07

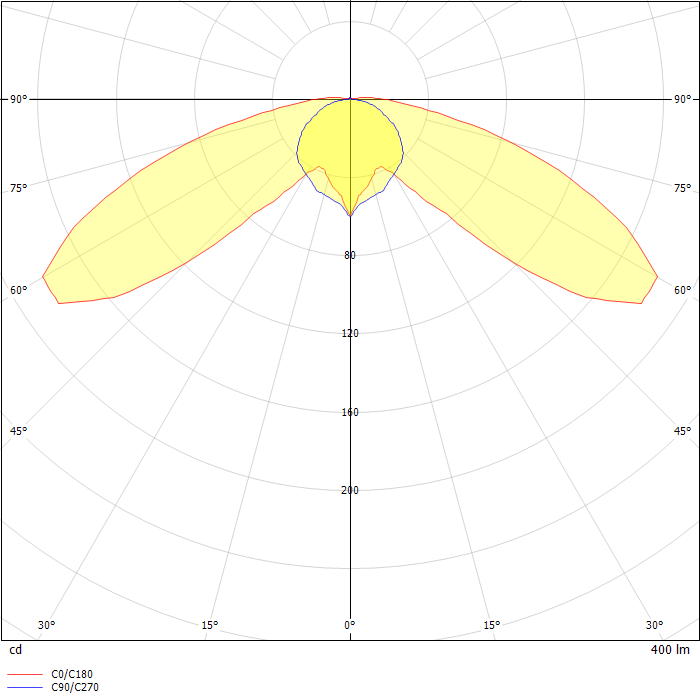

Photometric data

ZIP file
