Product data sheet

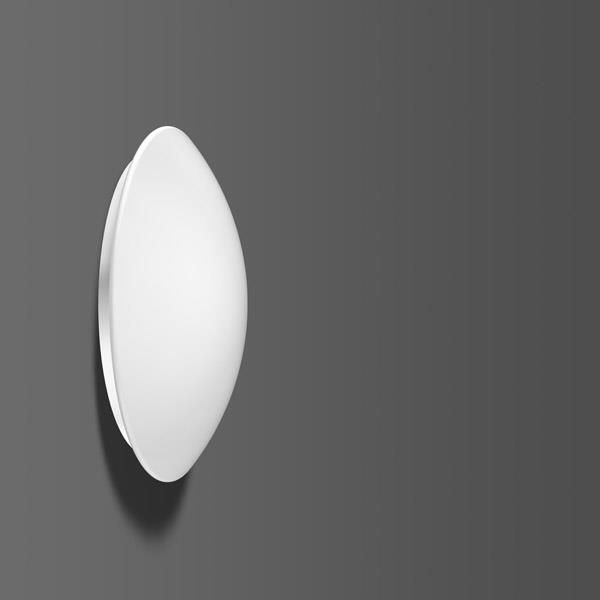

Flat Basic
211425.002.1
RZB
Series: Flat Basic Type of Protection: IP 43, IP 44 Protection Class: I Voltage: 220 - 240 V / 50 - 60 Hz Base: plastic. Diffuser fastening: bayonet lock. Diffuser: hand-blown opal glass, satin finish. IP43 ceiling mounted, IP44 wall mounted. Available Colours: pure white (RAL 9010) Type of Installation: Ceiling mounting, Wall (surface) Dimensions: D 630, H 160 Lamp: LED Colour Temperature: 4000K Socket 1: without socket Operating Mode Lamp 1: Converter not necessary Safety Marks: F-mark Impact Protection: IK03 (0,35 Joule) Luminaire flux LED: 2800lm System power: 33W Beam Angle: 117° Number of fittings B10A: 53 Number of fittings B16A: 85 Number of fittings C10A: 53 Number of fittings C16A: 85 Inrush current: 0,2A Unified Glare Ratio: 17,8 EEC: A+
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 33 W | 2800 lm | 85 lm/W | 4000 K | 80 |
Mounting mode
Wall mounted
Shape and measurements
Height: 160 mm
Diameter: 630 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 33 W
Protection
IP: 43
IK: 03
Photometric data
ZIP file
